Q2. Analyse the circuit answer the questions based on Superposition theorem. (10 Marks) 30 (2 w 500 mA 60 2 50 2 2 100 £

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Q2. Analyse the circuit answer the questions based on Superposition theorem. (10 Marks) 30 (2 w 500 mA 60 2 50 2 2 100 £

Post by answerhappygod »

Q2 Analyse The Circuit Answer The Questions Based On Superposition Theorem 10 Marks 30 2 W 500 Ma 60 2 50 2 2 100 1
Q2 Analyse The Circuit Answer The Questions Based On Superposition Theorem 10 Marks 30 2 W 500 Ma 60 2 50 2 2 100 1 (17.93 KiB) Viewed 38 times

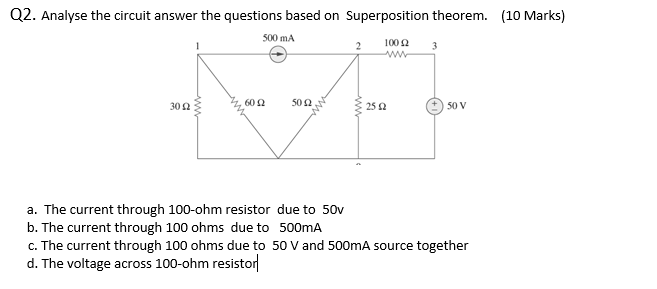

Q2. Analyse the circuit answer the questions based on Superposition theorem. (10 Marks) 30 (2 w 500 mA 60 2 50 2 2 100 £2 2592 3 50 V a. The current through 100-ohm resistor due to 50v b. The current through 100 ohms due to 500mA c. The current through 100 ohms due to 50 V and 500mA source together d. The voltage across 100-ohm resistor
