Consider the scenario where an input voltage signal, t x(t)=4sin(250)+ Ssin(260) + 6sin(2100), 100). is amplified by a n

Post by answerhappygod »

Consider The Scenario Where An Input Voltage Signal T X T 4sin 250 Ssin 260 6sin 2100 100 Is Amplified By A N 1
Consider The Scenario Where An Input Voltage Signal T X T 4sin 250 Ssin 260 6sin 2100 100 Is Amplified By A N 1 (294.86 KiB) Viewed 35 times
what is the bandwidth and average power of both the input and output signals?
what value best describes the error between the actual output of the amplifier and the out put of an ideal amplifier(amplifier with constant gain across all frequencies)?

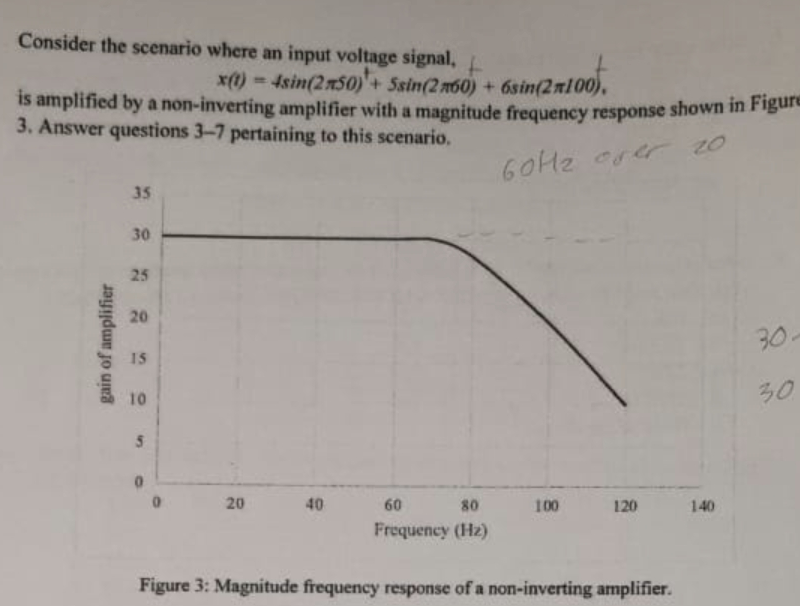

Consider the scenario where an input voltage signal, t x(t)=4sin(250)+ Ssin(260) + 6sin(2100), 100). is amplified by a non-inverting amplifier with a magnitude frequency response shown in Figure 3. Answer questions 3-7 pertaining to this scenario. 60Hz over 20 gain of amplifier 35 30 25 20 15 10 5 0 20 40 60 80 Frequency (Hz) 100 120 Figure 3: Magnitude frequency response of a non-inverting amplifier. 140 30. 30
