(a) For the circuit in Figure Q1(a), assume the circuit is in steady state at t = 0 before the switch is moved to positi

Post by answerhappygod »

A For The Circuit In Figure Q1 A Assume The Circuit Is In Steady State At T 0 Before The Switch Is Moved To Positi 1
A For The Circuit In Figure Q1 A Assume The Circuit Is In Steady State At T 0 Before The Switch Is Moved To Positi 1 (69.8 KiB) Viewed 54 times

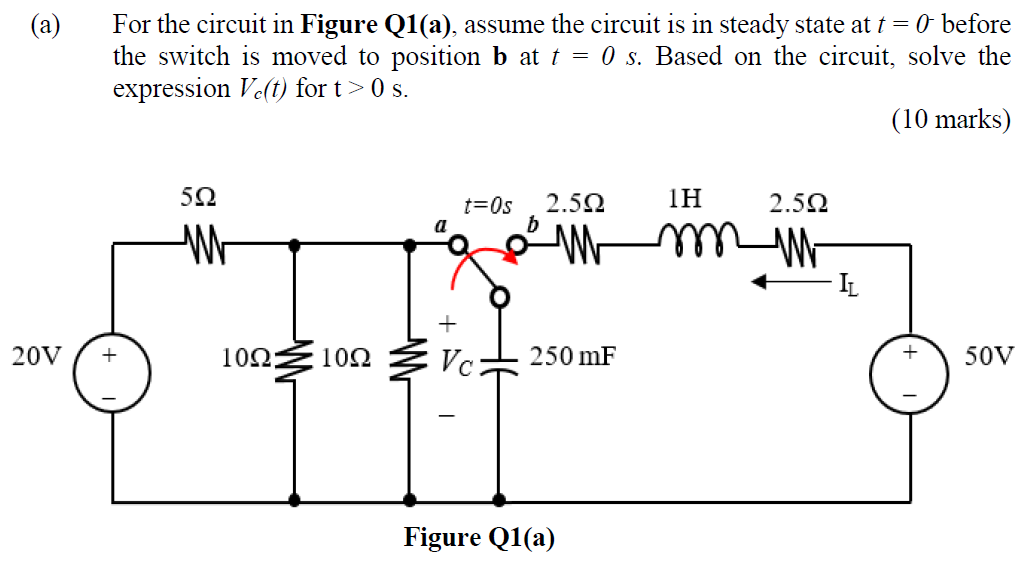

(a) For the circuit in Figure Q1(a), assume the circuit is in steady state at t = 0 before the switch is moved to position b at t = 0 s. Based on the circuit, solve the expression Ve(t) for t> 0 s. (10 marks) 20V + 5Q2 M 1002: 1092 t=0s Vc 1Η 2.5Ω mm M 2.592 250 mF Figure Q1(a) IL + 50V
