2. Given the following circuit using multiplexer: C false ₁ true B A out Prove that out (BAC) V (AAC). Hint: think about

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

2. Given the following circuit using multiplexer: C false ₁ true B A out Prove that out (BAC) V (AAC). Hint: think about

Post by answerhappygod »

2 Given The Following Circuit Using Multiplexer C False True B A Out Prove That Out Bac V Aac Hint Think About 1
2 Given The Following Circuit Using Multiplexer C False True B A Out Prove That Out Bac V Aac Hint Think About 1 (43.99 KiB) Viewed 35 times

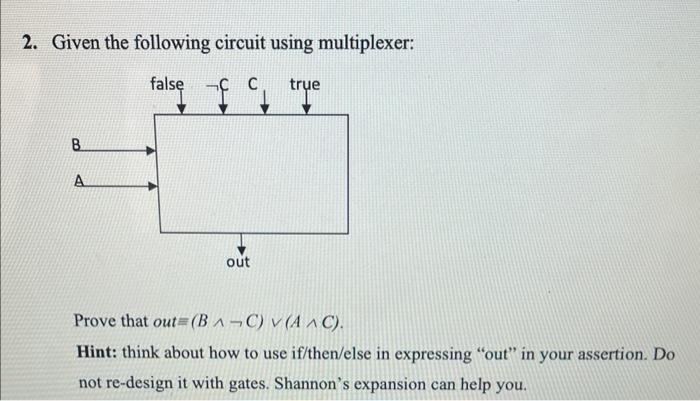

2. Given the following circuit using multiplexer: C false ₁ true B A out Prove that out (BAC) V (AAC). Hint: think about how to use if/then/else in expressing "out" in your assertion. Do not re-design it with gates. Shannon's expansion can help you.
