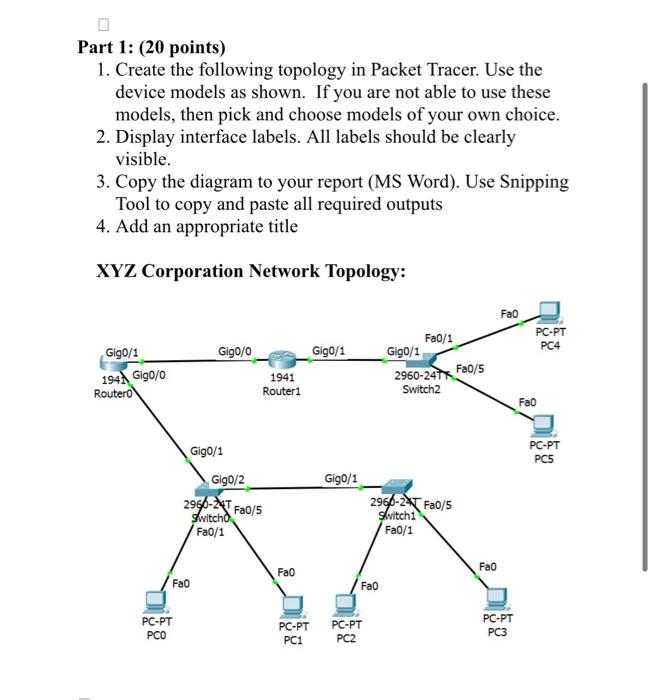

Part 1: (20 points) 1. Create the following topology in Packet Tracer. Use the device models as shown. If you are not able to use these models, then pick and choose models of your own choice. 2. Display interface labels. All labels should be clearly visible. 3. Copy the diagram to your report (MS Word). Use Snipping Tool to copy and paste all required outputs 4. Add an appropriate title XYZ Corporation Network Topology: Gig0/1 194 Gig0/0 Routero PC-PT PCO Gigo/0 Gig0/1 Fao Gigo/2 2966-24T Switcho Fa0/1 1941 Router1 Fa0/5 Fao PC-PT PC1 Gigo/1 Gig0/1 Fa0 PC-PT PC2 Fa0/1 Gig0/1 2960-2475 Fa0/5 Switch2 2966-24 Fa0/5 Switch1 Fa0/1 Fa0 Fao PC-PT PC3 PC-PT PC4 Fa0 PC-PT PC5
