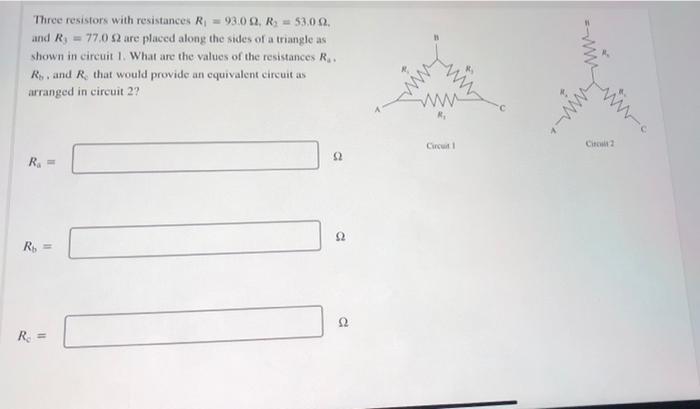

Three resistors with resistances R₁ = 93.0 2, R₂ 53.002. and R, 77,0 $2 are placed along the sides of a triangle as shown in circuit 1. What are the values of the resistances R.. Ry, and R. that would provide an equivalent circuit as arranged in circuit 2? R₁ = R₁ = R₂ = 92 22 www Circuit 1 Circuit 2

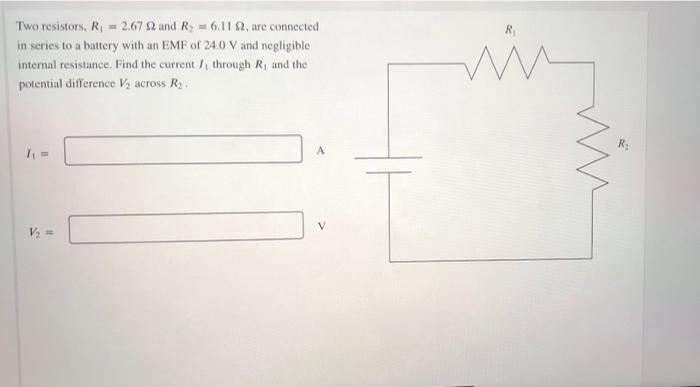

Two resistors, R₁ = 2.67 $2 and R₂ = 6.11 2, are connected in series to a battery with an EMF of 24.0 V and negligible internal resistance. Find the current /, through R, and the potential difference V₂ across R₂.. V₂ = mi
