Determine the force in each member of the loaded truss. All triangles are equilateral with side length d. The forces are positive if in tension, negative if in compression.

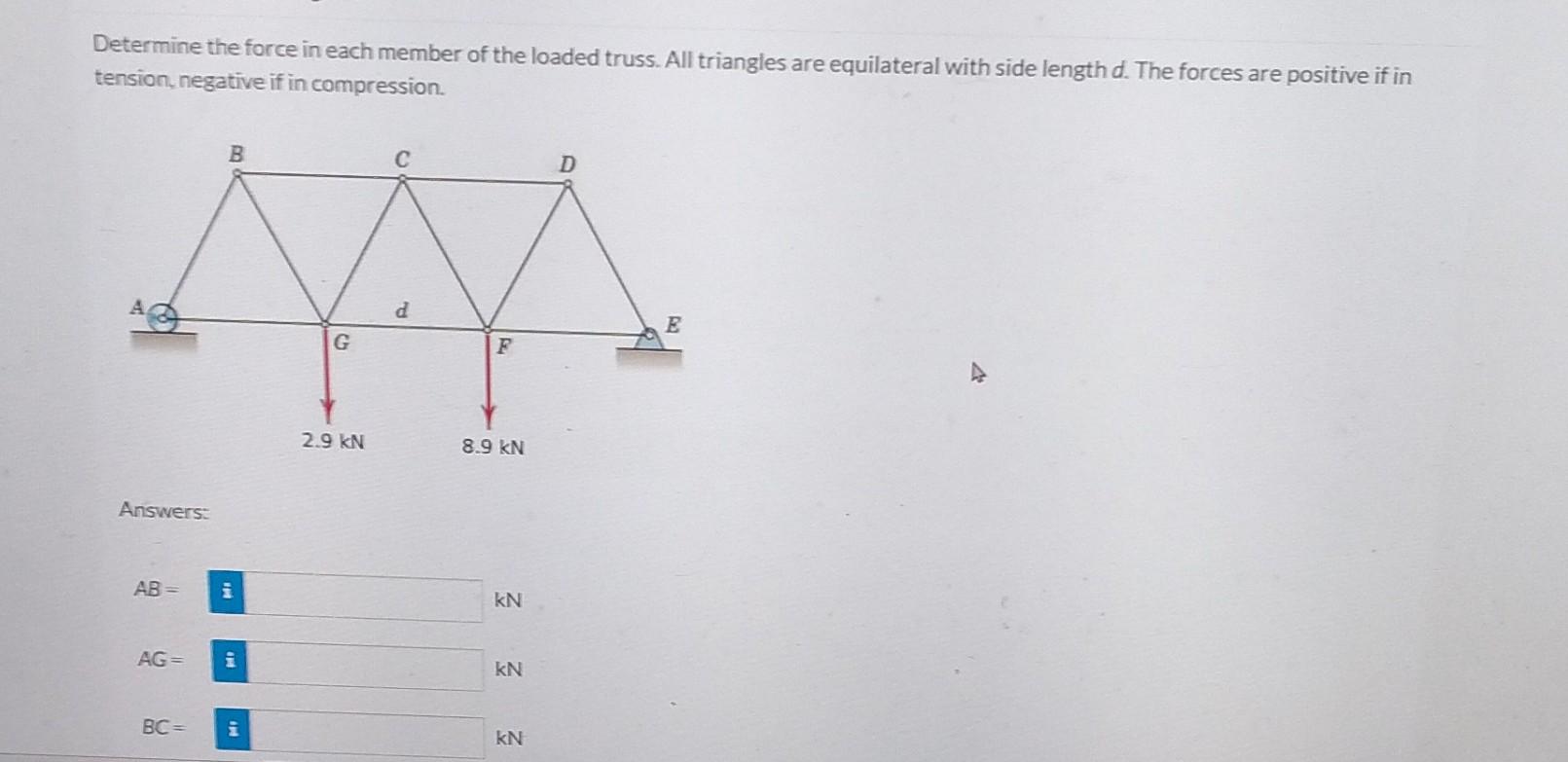

Determine the force in each member of the loaded truss. All triangles are equilateral with side length d. The forces are positive if in tension, negative if in compression. Answers: AB= AG= BC= B i i i C D M d G F 8.9 kN 2.9 kN kN kN KN E

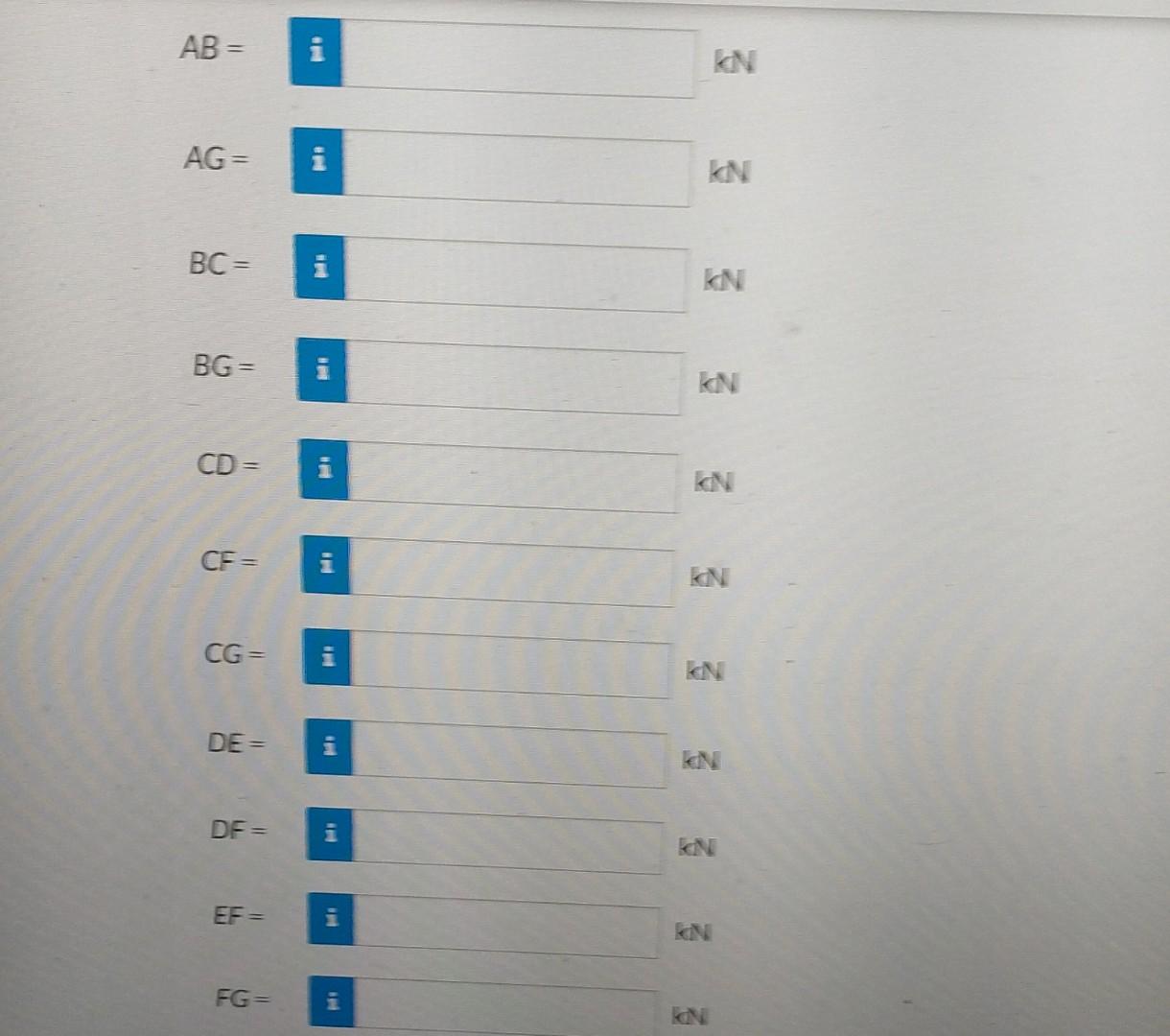

AB= AG= BC= BG= CD=> CF = CG= DE= DF= EF= FG= IP TH N Im HI MI IM i KN KN KN EN KN KN
