Problem 1. Use virtual work method and determine the following unknowns on the frame shown below. Use I = 800 x 106 mm a

[answerhappygod]

Problem 1 Use Virtual Work Method And Determine The Following Unknowns On The Frame Shown Below Use I 800 X 106 Mm A 1 (34.85 KiB) Viewed 57 times

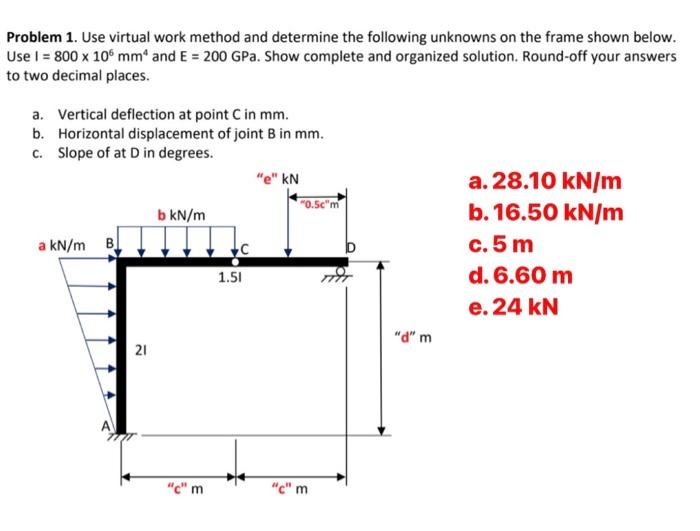

Problem 1. Use virtual work method and determine the following unknowns on the frame shown below. Use I = 800 x 106 mm and E = 200 GPa. Show complete and organized solution. Round-off your answers to two decimal places. a. Vertical deflection at point C in mm. b. Horizontal displacement of joint B in mm. c. Slope of at D in degrees. a kN/m B 21 b kN/m "c" m 1.51 "e" kN "0.5c"m m "d" m a. 28.10 kN/m b. 16.50 kN/m c. 5 m d. 6.60 m e. 24 kN
