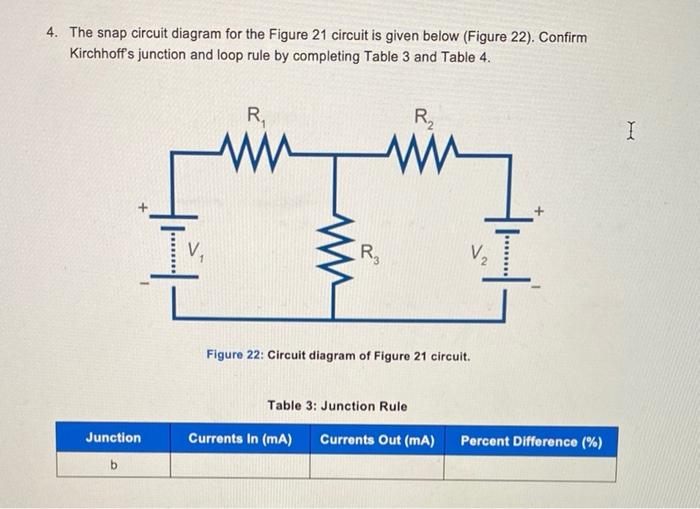

4. The snap circuit diagram for the Figure 21 circuit is given below (Figure 22). Confirm Kirchhoff's junction and loop rule by completing Table 3 and Table 4. Junction b R₁ ww R₂ Table 3: Junction Rule Currents In (mA) R₂ Figure 22: Circuit diagram of Figure 21 circuit. V₂ Currents Out (mA) Percent Difference (%) I

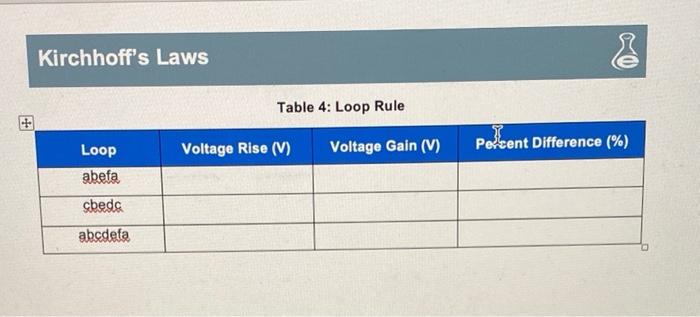

Kirchhoff's Laws Loop abefa cbedc abcdefa Table 4: Loop Rule Voltage Rise (V) Voltage Gain (V) Percent Difference (%)

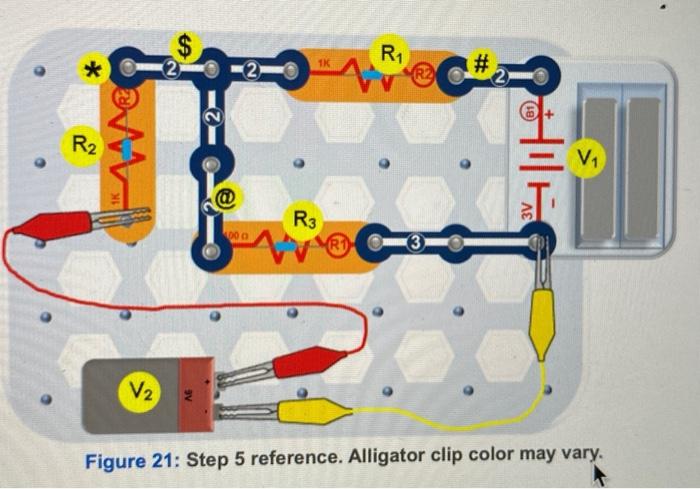

* R₂ V₂ 2 400 2 1K R3 W R₁ W (R1) R2 (3 # 2 Hil 3V V₁ Figure 21: Step 5 reference. Alligator clip color may vary.
