RLC Circuit with an AC Voltage Source Nodes A to B has a voltage drop of 5.0 cos(2t + 7/3. Nodes A and D is connected by

[answerhappygod]

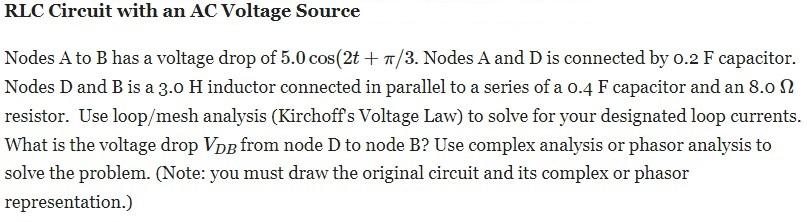

Rlc Circuit With An Ac Voltage Source Nodes A To B Has A Voltage Drop Of 5 0 Cos 2t 7 3 Nodes A And D Is Connected By 1 (40.06 KiB) Viewed 114 times

RLC Circuit with an AC Voltage Source Nodes A to B has a voltage drop of 5.0 cos(2t + 7/3. Nodes A and D is connected by 0.2 F capacitor. Nodes D and B is a 3.0 H inductor connected in parallel to a series of a 0.4 F capacitor and an 8.0 N resistor. Use loop/mesh analysis (Kirchoff's Voltage Law) to solve for your designated loop currents. What is the voltage drop VDB from node D to node B? Use complex analysis or phasor analysis to solve the problem. (Note: you must draw the original circuit and its complex or phasor representation.)
