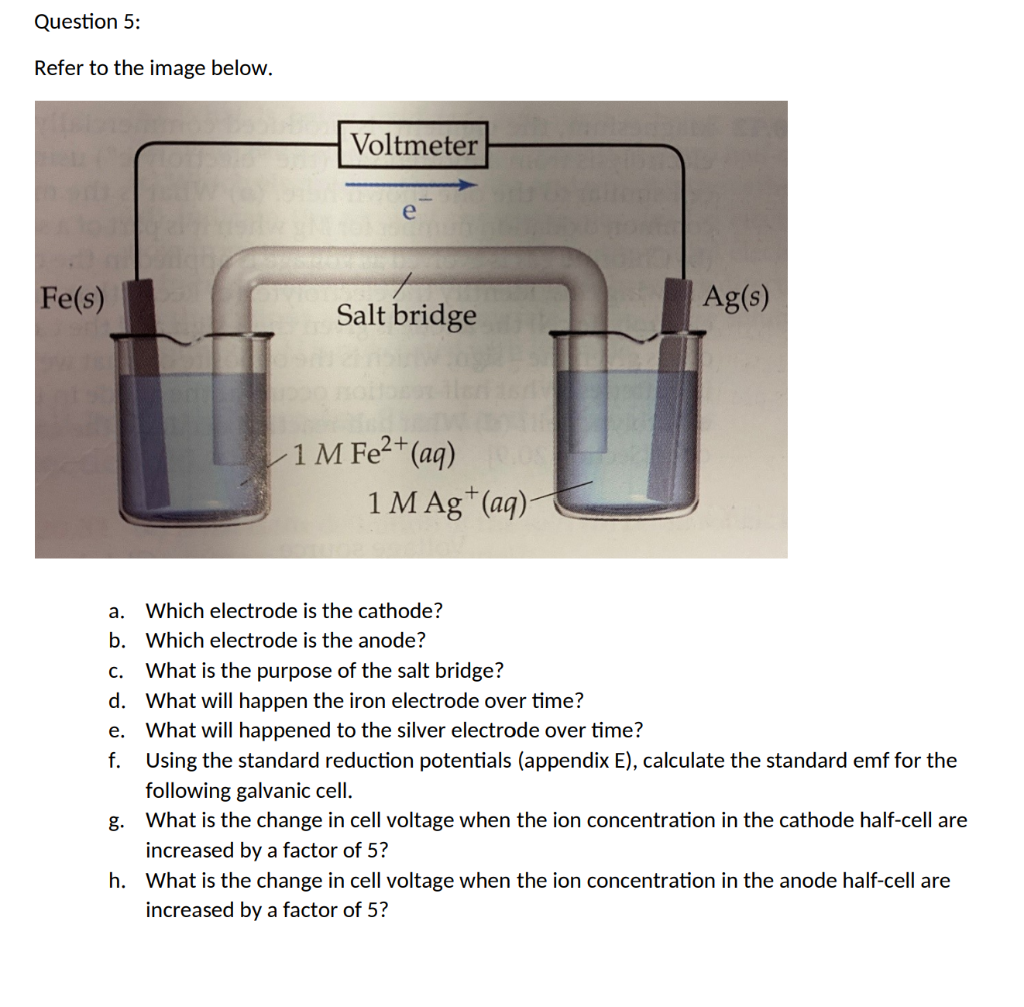

Question 5: Refer to the image below. Fe(s) Voltmeter Salt bridge 2+ 1 M Fe²+ (aq) 1 M Ag (aq)- a. Which electrode is th

[answerhappygod]

Question 5 Refer To The Image Below Fe S Voltmeter Salt Bridge 2 1 M Fe Aq 1 M Ag Aq A Which Electrode Is Th 1 (742.94 KiB) Viewed 25 times

Question 5: Refer to the image below. Fe(s) Voltmeter Salt bridge 2+ 1 M Fe²+ (aq) 1 M Ag (aq)- a. Which electrode is the cathode? b. Which electrode is the anode? Ag(s) C. What is the purpose of the salt bridge? d. What will happen the iron electrode over time? e. What will happened to the silver electrode over time? f. Using the standard reduction potentials (appendix E), calculate the standard emf for the following galvanic cell. g. What is the change in cell voltage when the ion concentration in the cathode half-cell are increased by a factor of 5? h. What is the change in cell voltage when the ion concentration in the anode half-cell are increased by a factor of 5?
