- Q2 A B V Determine The Equivalent Frequency Domain Impedance Z For The Circuit Shown In Figure Q2 A 4 Marks Z 1 (33.28 KiB) Viewed 27 times

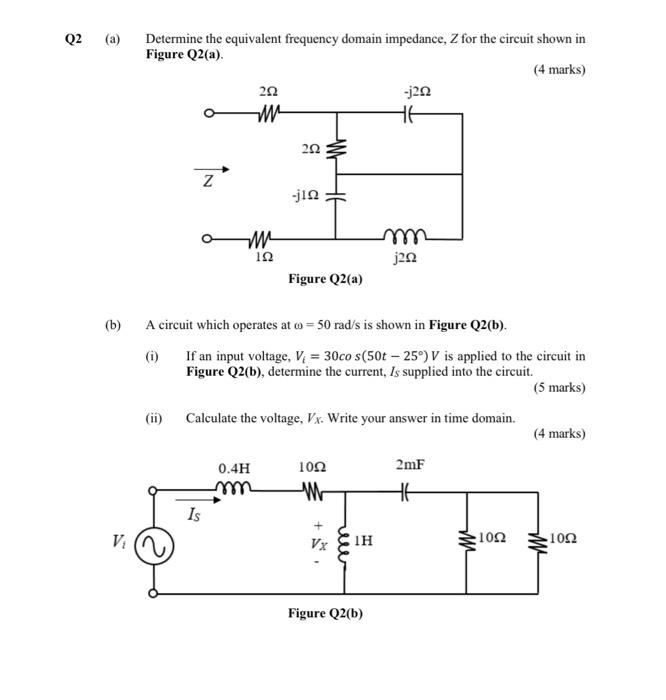

Q2 (a) (b) V₁ Determine the equivalent frequency domain impedance, Z for the circuit shown in Figure Q2(a). (4 marks) Z
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
Q2 (a) (b) V₁ Determine the equivalent frequency domain impedance, Z for the circuit shown in Figure Q2(a). (4 marks) Z
Q2 (a) (b) V₁ Determine the equivalent frequency domain impedance, Z for the circuit shown in Figure Q2(a). (4 marks) Z (ii) 292 MM² m ΙΩ Is 202 -j12 0.4H Figure Q2(a) A circuit which operates at co= 50 rad/s is shown in Figure Q2(b). (i) If an input voltage, V₁ = 30co s(50t -25°) V is applied to the circuit in Figure Q2(b), determine the current, Is supplied into the circuit. (5 marks) Calculate the voltage, Vx. Write your answer in time domain. 1002 W -j20 Vx j20 ΤΗ Figure Q2(b) 2mF m² 1092 (4 marks) 1002
