Answer the following - show your work on scrap paper! (5 marks): Determine the buckling load for a b = 50mm d = 70mm ste

Post by answerhappygod »

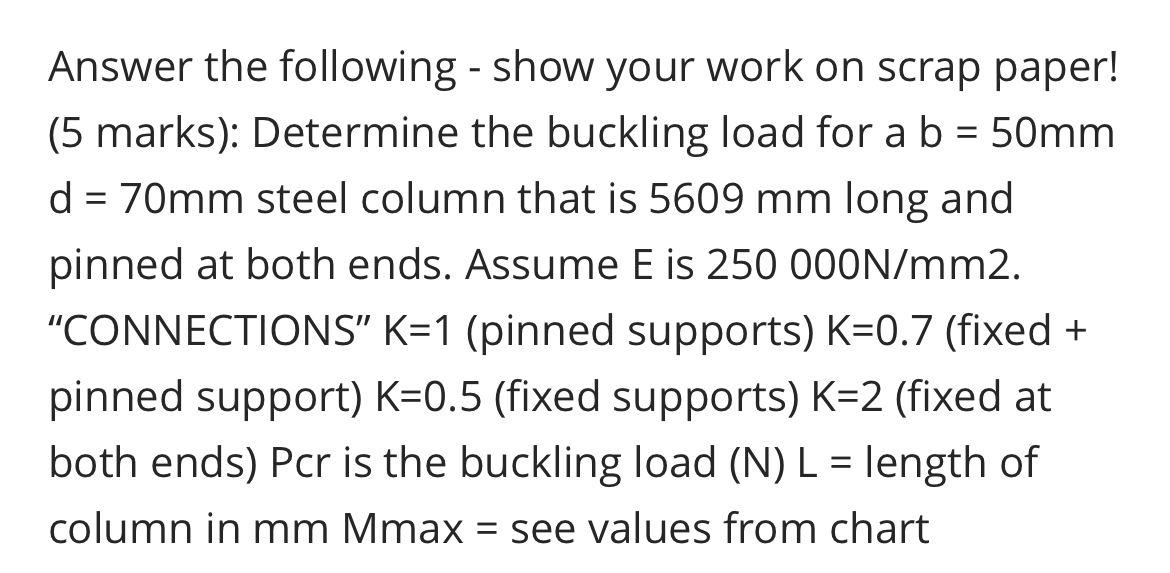

Answer The Following Show Your Work On Scrap Paper 5 Marks Determine The Buckling Load For A B 50mm D 70mm Ste 1
Answer The Following Show Your Work On Scrap Paper 5 Marks Determine The Buckling Load For A B 50mm D 70mm Ste 1 (95.79 KiB) Viewed 28 times
Answer the following - show your work on scrap paper! (5 marks): Determine the buckling load for a b = 50mm d = 70mm steel column that is 5609 mm long and pinned at both ends. Assume E is 250 000N/mm2. "CONNECTIONS" K-1 (pinned supports) K=0.7 (fixed + pinned support) K=0.5 (fixed supports) K=2 (fixed at both ends) Pcr is the buckling load (N) L = length of column in mm Mmax = see values from chart
