The figure below shows a battery connected to a circuit. The potential difference across the battery and the resistance

[answerhappygod]

The Figure Below Shows A Battery Connected To A Circuit The Potential Difference Across The Battery And The Resistance 1 (24.44 KiB) Viewed 42 times

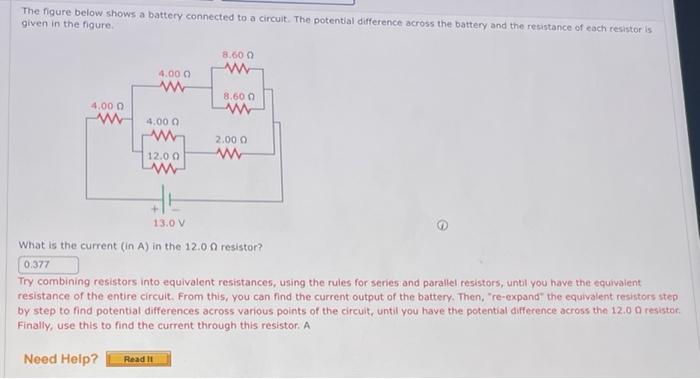

The figure below shows a battery connected to a circuit. The potential difference across the battery and the resistance of each resistor is given in the figure. 4.00 0 4.00 ( www 4.000 12.00 13.0 V Read It 8.60 0 www 8.600 www 2.000 What is the current (in A) in the 12.00 resistor? 0.377 Try combining resistors into equivalent resistances, using the rules for series and parallel resistors, until you have the equivalent resistance of the entire circuit. From this, you can find the current output of the battery. Then, "re-expand the equivalent resistors step by step to find potential differences across various points of the circuit, until you have the potential difference across the 12.00 resistor. Finally, use this to find the current through this resistor. A Need Help?
