< Assignment Score: Question 3 of 7 > 0% Resources O O O O O Which surface of the stud is under compression, and which s

[answerhappygod]

Assignment Score Question 3 Of 7 0 Resources O O O O O Which Surface Of The Stud Is Under Compression And Which S 1 (31.78 KiB) Viewed 26 times

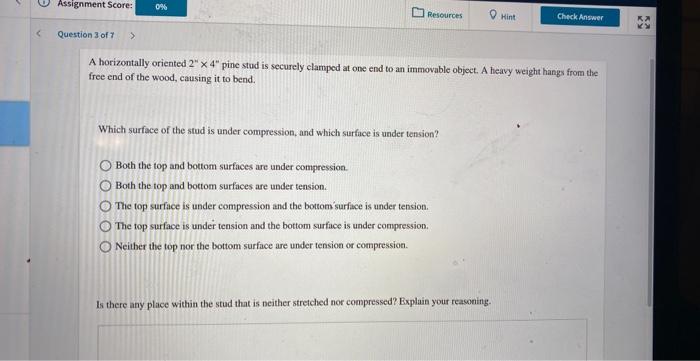

< Assignment Score: Question 3 of 7 > 0% Resources O O O O O Which surface of the stud is under compression, and which surface is under tension? Both the top and bottom surfaces are under compression. O Both the top and bottom surfaces are under tension. A horizontally oriented 2" x 4" pine stud is securely clamped at one end to an immovable object. A heavy weight hangs from the free end of the wood, causing it to bend. The top surface is under compression and the bottom surface is under tension. The top surface is under tension and the bottom surface is under compression. Neither the top nor the bottom surface are under tension or compression. Hint Is there any place within the stud that is neither stretched nor compressed? Explain your reasoning. Check Answer
