Below Is The Time And Voltage Data For A Discharging Rc Circuit With R 1000 Time S Voltage V 0 005 0 8594 0 7613 0 1 (17.62 KiB) Viewed 24 times
b.)
Below Is The Time And Voltage Data For A Discharging Rc Circuit With R 1000 Time S Voltage V 0 005 0 8594 0 7613 0 2 (11.25 KiB) Viewed 24 times
c.)
Below Is The Time And Voltage Data For A Discharging Rc Circuit With R 1000 Time S Voltage V 0 005 0 8594 0 7613 0 3 (11.91 KiB) Viewed 24 times

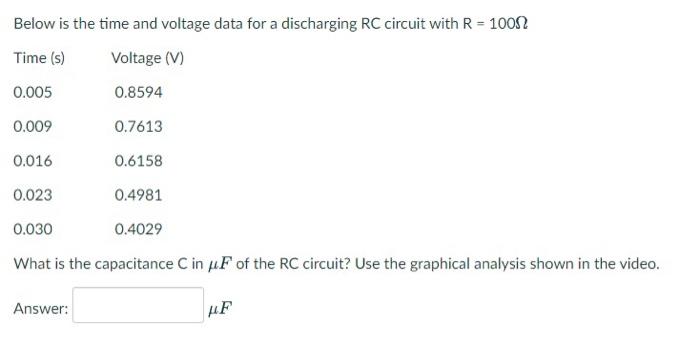

Below is the time and voltage data for a discharging RC circuit with R = 1000 Time (s) Voltage (V) 0.005 0.8594 0.7613 0.016 0.6158 0.023 0.4981 0.030 0.4029 What is the capacitance C in μF of the RC circuit? Use the graphical analysis shown in the video. 0.009 Answer: UF

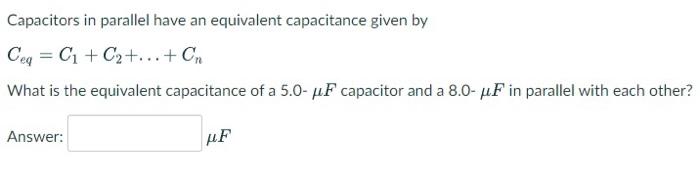

Capacitors in parallel have an equivalent capacitance given by Ceq = C₁+C₂+...+ Cn What is the equivalent capacitance of a 5.0- uF capacitor and a 8.0- uF in parallel with each other? Answer: μF
Capacitors in series have an equivalent capacitance given by Ceq = (₁+2+...+2 ++/-)² What is the equivalent capacitance of a 5.0- uF capacitor and a 8.0- uF in series with each other? Answer: HF
