Question 1 10 out of 10 points A solenoid is constructed from 5000 turns of wire onto a form of length 6.28cm and diamet

[answerhappygod]

Question 1 10 Out Of 10 Points A Solenoid Is Constructed From 5000 Turns Of Wire Onto A Form Of Length 6 28cm And Diamet 1 (49.75 KiB) Viewed 16 times

Question 1 10 Out Of 10 Points A Solenoid Is Constructed From 5000 Turns Of Wire Onto A Form Of Length 6 28cm And Diamet 2 (121.94 KiB) Viewed 16 times

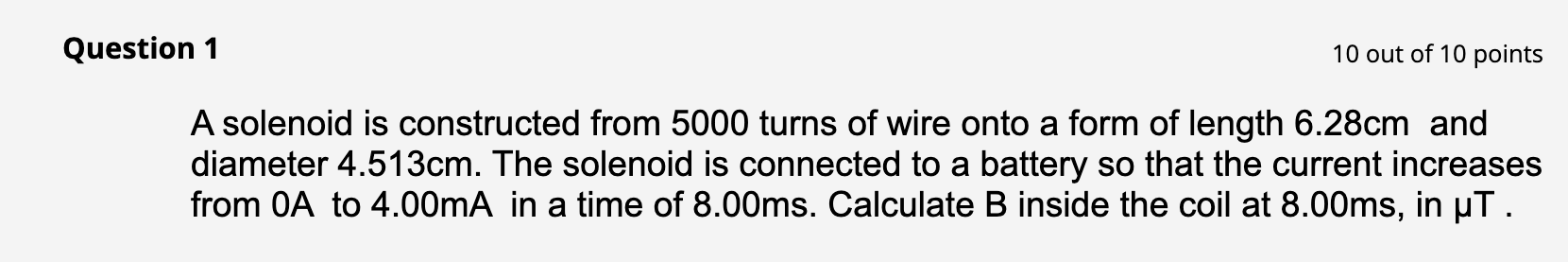

Question 1 10 out of 10 points A solenoid is constructed from 5000 turns of wire onto a form of length 6.28cm and diameter 4.513cm. The solenoid is connected to a battery so that the current increases from OA to 4.00mA in a time of 8.00ms. Calculate B inside the coil at 8.00ms, in µT.

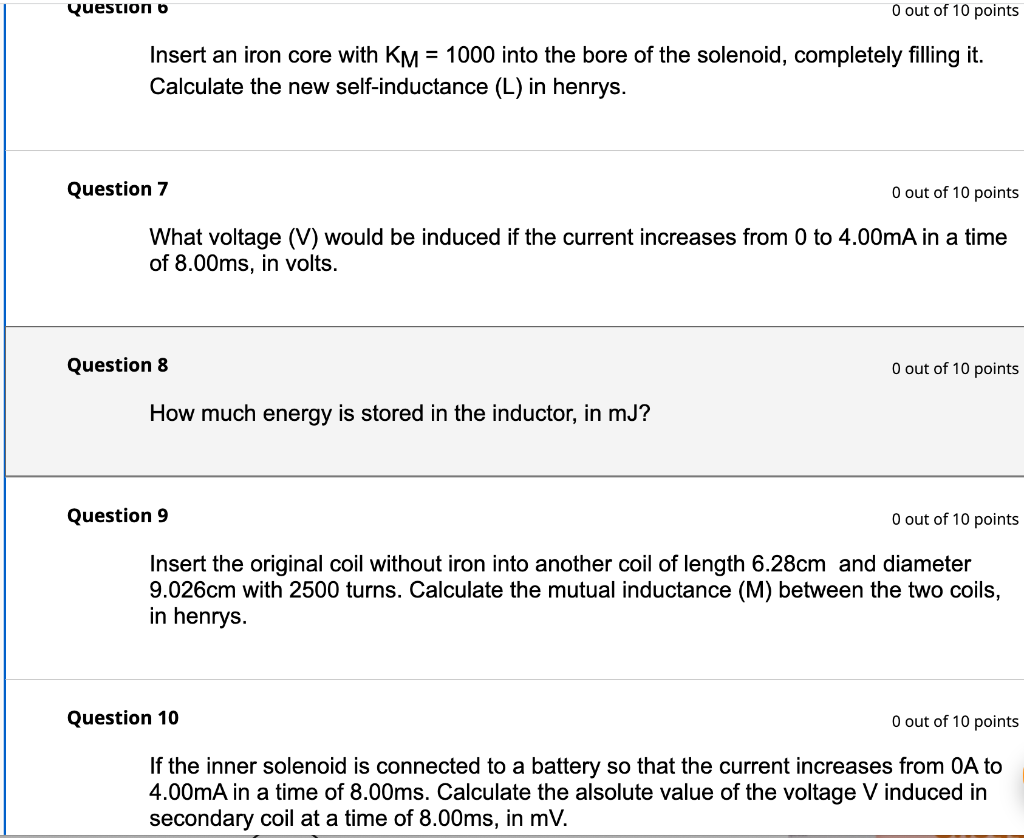

0 out of 10 points Insert an iron core with KM = 1000 into the bore of the solenoid, completely filling it. Calculate the new self-inductance (L) in henrys. Question b Question 7 0 out of 10 points What voltage (V) would be induced if the current increases from 0 to 4.00mA in a time of 8.00ms, in volts. Question 8 How much energy is stored in the inductor, in mJ? 0 out of 10 points Question 9 0 out of 10 points Insert the original coil without iron into another coil of length 6.28cm and diameter 9.026cm with 2500 turns. Calculate the mutual inductance (M) between the two coils, in henrys. Question 10 0 out of 10 points If the inner solenoid is connected to a battery so that the current increases from OA to 4.00mA in a time of 8.00ms. Calculate the alsolute value of the voltage V induced in secondary coil at a time of 8.00ms, in mV.
