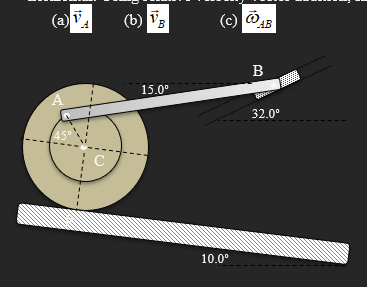

A wheel of outside diameter 56.0 cm and hub diameter 30.0 cm isrolling at 2.40 m/s up a 10.0° incline. A rigid member AB oflength 95.0 cm is connected on the hub at point A shown and isinclined at 15.0° to the horizontal. Member AB is connectedto a slot of angle 32.0° to the horizontal. Using relative velocityvector addition, find
Explain fully your approach of the ICR method
A Wheel Of Outside Diameter 56 0 Cm And Hub Diameter 30 0 Cm Is Rolling At 2 40 M S Up A 10 0 Incline A Rigid Member 1 (21.63 KiB) Viewed 38 times
A Wheel Of Outside Diameter 56 0 Cm And Hub Diameter 30 0 Cm Is Rolling At 2 40 M S Up A 10 0 Incline A Rigid Member 2 (26.21 KiB) Viewed 38 times
А 45° с (b) B 15.0⁰ (c) CAB 10.0⁰ B 32.0⁰

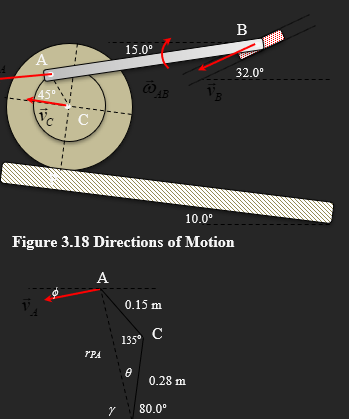

A 45° VC A TPA 15.0⁰ 10.0⁰ Figure 3.18 Directions of Motion y AB 0.15 m с 135° 0 0.28 m B 80.0⁰ B 32.0⁰
