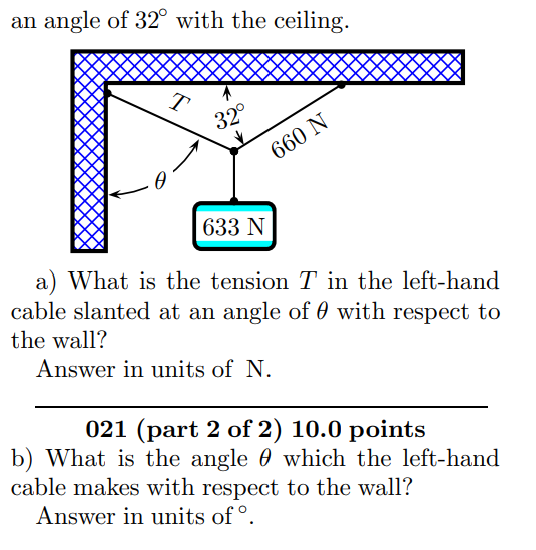

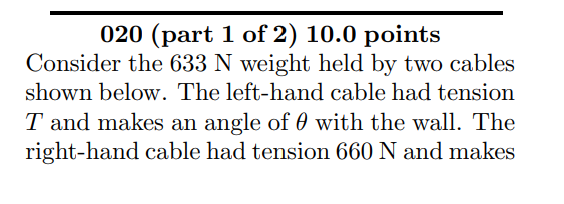

020 (part 1 of 2) 10.0 points Consider the 633 N weight held by two cables shown below. The left-hand cable had tension T and makes an angle of 0 with the wall. The right-hand cable had tension 660 N and makes
an angle of 32° with the ceiling. T 32° 633 N 660 N a) What is the tension T in the left-hand cable slanted at an angle of 0 with respect to the wall? Answer in units of N. 021 (part 2 of 2) 10.0 points b) What is the angle which the left-hand cable makes with respect to the wall? Answer in units of º.
