For the circuit shown in figure, find the current through the resistor Rs? Find the potential difference across resistor

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

For the circuit shown in figure, find the current through the resistor Rs? Find the potential difference across resistor

Post by answerhappygod »

For The Circuit Shown In Figure Find The Current Through The Resistor Rs Find The Potential Difference Across Resistor 1
For The Circuit Shown In Figure Find The Current Through The Resistor Rs Find The Potential Difference Across Resistor 1 (33.67 KiB) Viewed 32 times

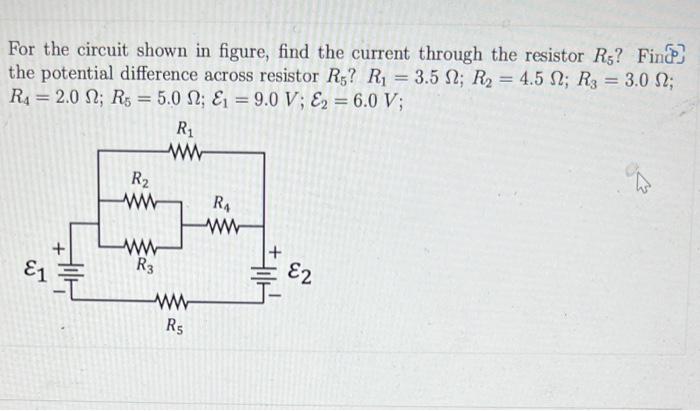

For the circuit shown in figure, find the current through the resistor Rs? Find the potential difference across resistor R5? R₁ = 3.5 ; R₂ = 4.5 ; R3 = 3.0; R₁ = 2.0 ; R5 = 5.0 ; &₁ = 9.0 V; E2 = 6.0 V; E1 દા + R₂ ww ww R3 R₁ ww R5 R4 ww +11H 82
