Batman is attempting to defuse a bomb created by The Riddler and opens it to find a set of resistors connected as shown

[answerhappygod]

Batman Is Attempting To Defuse A Bomb Created By The Riddler And Opens It To Find A Set Of Resistors Connected As Shown 1 (11.7 KiB) Viewed 38 times

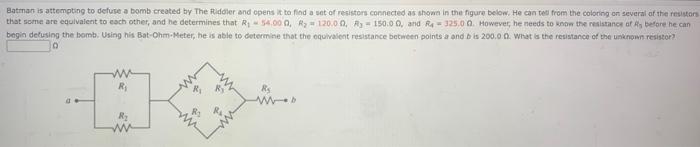

Batman is attempting to defuse a bomb created by The Riddler and opens it to find a set of resistors connected as shown in the figure below. He can tell from the coloring on several of the resistors that some are equivalent to each other, and he determines that R₁ 54.00 0, R₂ 120.00, Ry 150.00, and R4 325,00. However, he needs to know the resistance of Rs before he can begin defusing the bomb. Using his Bat-Ohm-Meter, he is able to determine that the equivalent resistance between points a and bis 200.0 0. What is the resistance of the unknown resistor? D R₁ 4 www R₂
