- The Figure Below Shows Three Resistors R 15 50 R 8 100 And R3 13 50 And Two Batteries Connected In A Circuit 1 (15.83 KiB) Viewed 28 times
The figure below shows three resistors (R₁ = 15.50, R₂ = 8.100, and R3 = 13.50) and two batteries connected in a circuit
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
The figure below shows three resistors (R₁ = 15.50, R₂ = 8.100, and R3 = 13.50) and two batteries connected in a circuit

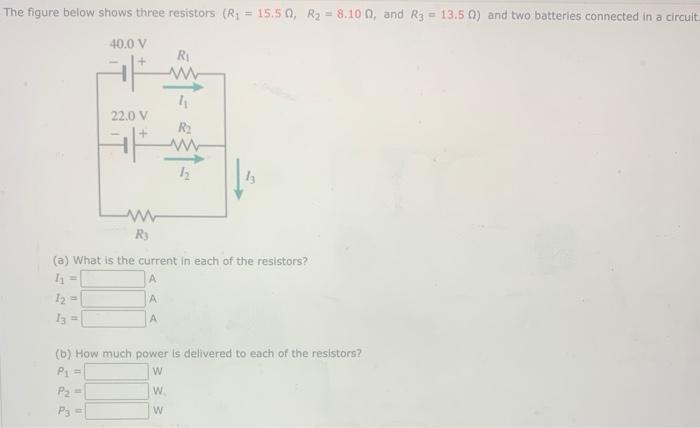

The figure below shows three resistors (R₁ = 15.50, R₂ = 8.100, and R3 = 13.50) and two batteries connected in a circuit. 40.0 V + 22.0 V + www Ry R₁ 4₁ 12 (a) What is the current in each of the resistors? 1₁ = A 1₂ = A 13 = A (b) How much power is delivered to each of the resistors? P₁ = W P₂ = W P3 W
