Problem 3 For the concurrent forces shown in the figure. Determine: 128.56 N 104.12N X 114.03 N a. Horizontal Components

Post by answerhappygod »

Problem 3 For The Concurrent Forces Shown In The Figure Determine 128 56 N 104 12n X 114 03 N A Horizontal Components 1
Problem 3 For The Concurrent Forces Shown In The Figure Determine 128 56 N 104 12n X 114 03 N A Horizontal Components 1 (77.32 KiB) Viewed 29 times

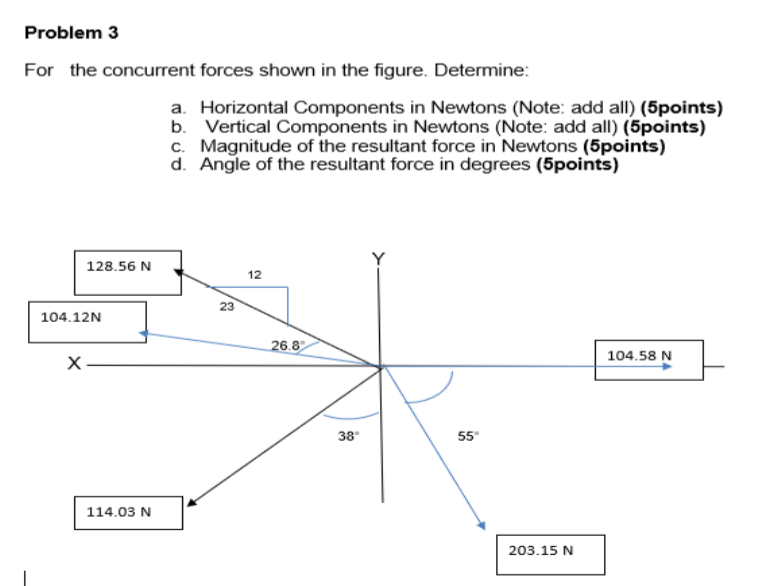

Problem 3 For the concurrent forces shown in the figure. Determine: 128.56 N 104.12N X 114.03 N a. Horizontal Components in Newtons (Note: add all) (5points) b. Vertical Components in Newtons (Note: add all) (5points) c. Magnitude of the resultant force in Newtons (5points) d. Angle of the resultant force in degrees (5points) 23 12 26.8 38° 55° 203.15 N 104.58 N
