Problem1 For the concurrent forces shown in the figure. Determine: 217.9 N a. Horizontal Components in Newton (Note: add

Post by answerhappygod »

Problem1 For The Concurrent Forces Shown In The Figure Determine 217 9 N A Horizontal Components In Newton Note Add 1
Problem1 For The Concurrent Forces Shown In The Figure Determine 217 9 N A Horizontal Components In Newton Note Add 1 (80.81 KiB) Viewed 30 times

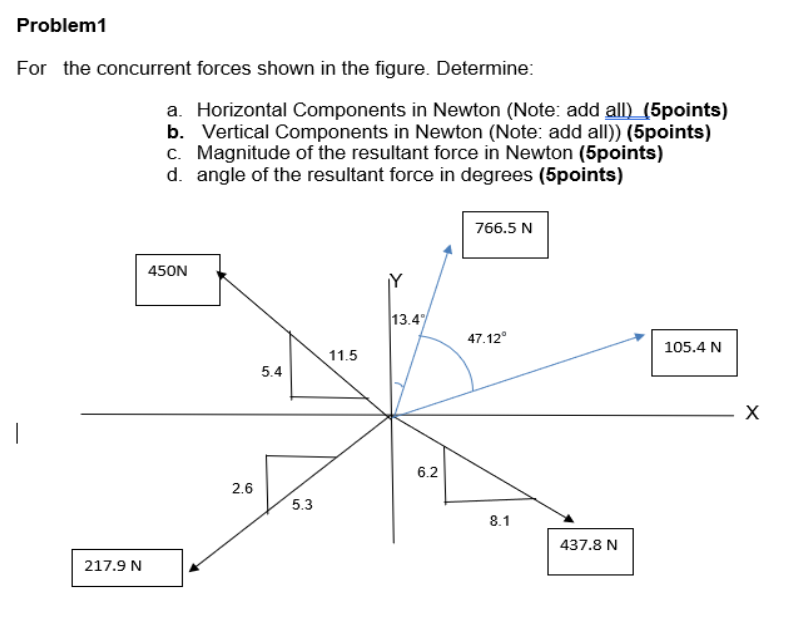

Problem1 For the concurrent forces shown in the figure. Determine: 217.9 N a. Horizontal Components in Newton (Note: add all) (5points) b. Vertical Components in Newton (Note: add all)) (5points) c. Magnitude of the resultant force in Newton (5points) d. angle of the resultant force in degrees (5points) 450N 2.6 5.4 5.3 11.5 Y 13.4% 6.2 766.5 N 47.12° 8.1 437.8 N 105.4 N X
