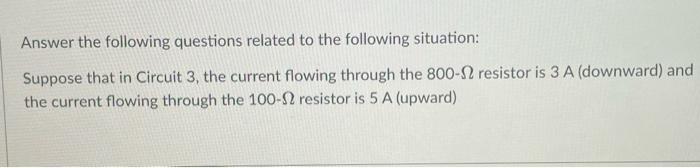

Answer the following questions related to the following situation: Suppose that in Circuit 3, the current flowing through the 800-S2 resistor is 3 A (downward) and the current flowing through the 100-2 resistor is 5 A (upward)

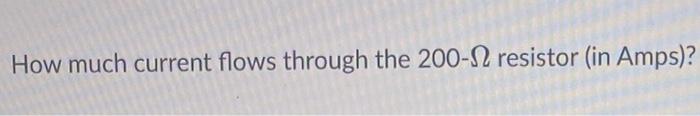

How much current flows through the 200- resistor (in Amps)?
