4) 30 points The pipe to the right shows a fluid flowing in a pipe. Assume that the fluid is incompressible. a) 10 point

[answerhappygod]

4 30 Points The Pipe To The Right Shows A Fluid Flowing In A Pipe Assume That The Fluid Is Incompressible A 10 Point 1 (30.31 KiB) Viewed 34 times

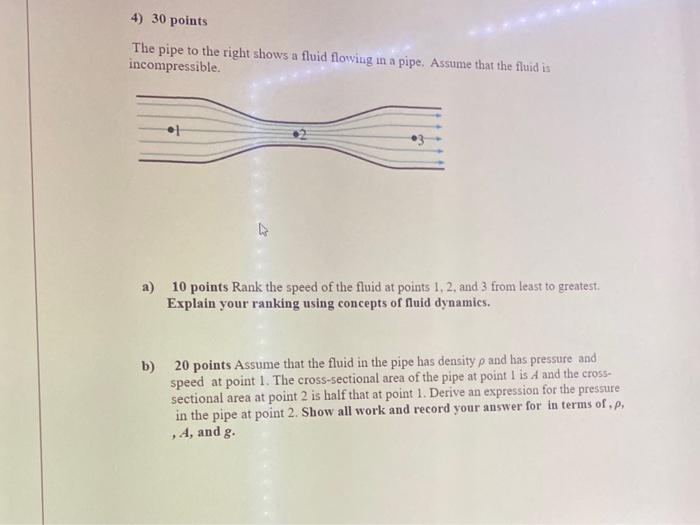

4) 30 points The pipe to the right shows a fluid flowing in a pipe. Assume that the fluid is incompressible. a) 10 points Rank the speed of the fluid at points 1, 2, and 3 from least to greatest. Explain your ranking using concepts of fluid dynamics. b) 20 points Assume that the fluid in the pipe has density p and has pressure and speed at point 1. The cross-sectional area of the pipe at point I is 4 and the cross- sectional area at point 2 is half that at point 1. Derive an expression for the pressure in the pipe at point 2. Show all work and record your answer for in terms of, p, , A, and g.
