Problem 3 For the circuit shown in the figure, R₁ = 6.00 2, R₂ = 6.00 2, R3 = 2.00 2, R4 = 4.00 £2, R₁ = 3.00 £2, and th

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Problem 3 For the circuit shown in the figure, R₁ = 6.00 2, R₂ = 6.00 2, R3 = 2.00 2, R4 = 4.00 £2, R₁ = 3.00 £2, and th

Post by answerhappygod »

Problem 3 For The Circuit Shown In The Figure R 6 00 2 R 6 00 2 R3 2 00 2 R4 4 00 2 R 3 00 2 And Th 1
Problem 3 For The Circuit Shown In The Figure R 6 00 2 R 6 00 2 R3 2 00 2 R4 4 00 2 R 3 00 2 And Th 1 (62.1 KiB) Viewed 28 times

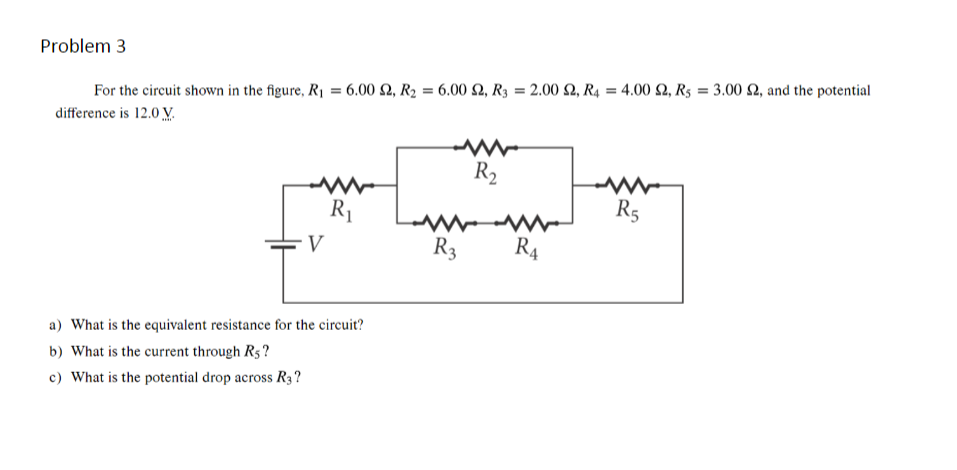

Problem 3 For the circuit shown in the figure, R₁ = 6.00 2, R₂ = 6.00 2, R3 = 2.00 2, R4 = 4.00 £2, R₁ = 3.00 £2, and the potential difference is 12.0 V. R₁ V a) What is the equivalent resistance for the circuit? b) What is the current through R$? c) What is the potential drop across R3? R3 R₂ R4 R5
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
