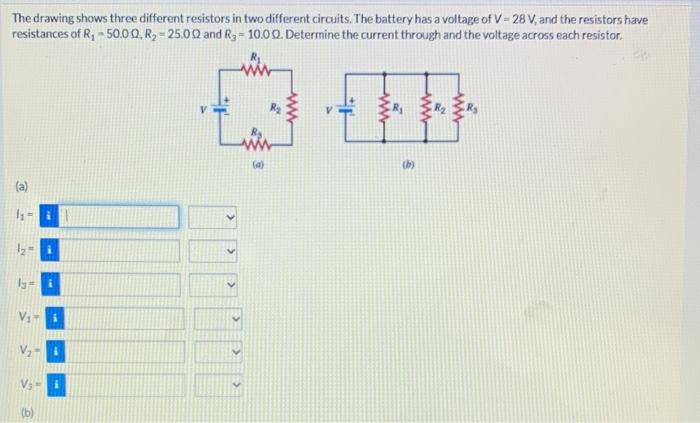

The drawing shows three different resistors in two different circuits. The battery has a voltage of V-28 V, and the resistors have resistances of R₁ - 50.00, R₂-25.00 and R₂-10.00. Determine the current through and the voltage across each resistor. > (a) C

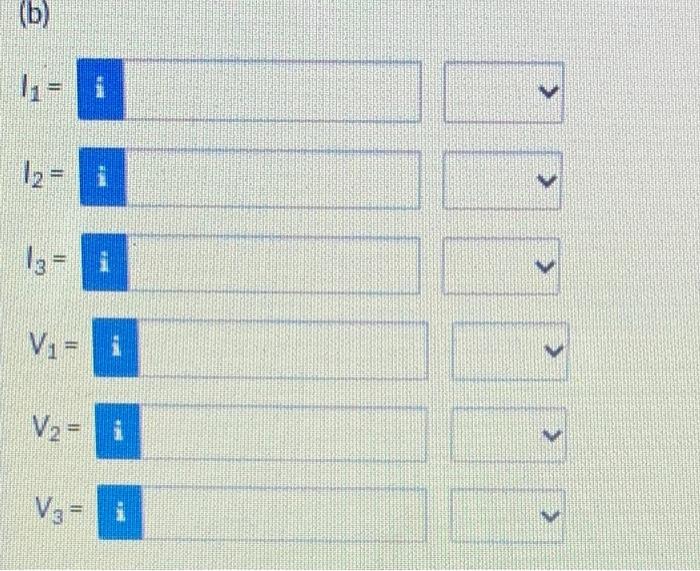

(b) 11 V₁= V₂ = i V3 = i V M
