1. horizontal component of the force at E, in lb
2. vertical component of the force at E, in lb
3. horizontal component of the force at A, in lb
4. vertical component of the force at A, in lb
5. Internal force at member BD, in lb
6. Internal force at member BC, in lb
1 Horizontal Component Of The Force At E In Lb 2 Vertical Component Of The Force At E In Lb 3 Horizontal Component 1 (39.73 KiB) Viewed 70 times
1 Horizontal Component Of The Force At E In Lb 2 Vertical Component Of The Force At E In Lb 3 Horizontal Component 2 (39.73 KiB) Viewed 70 times

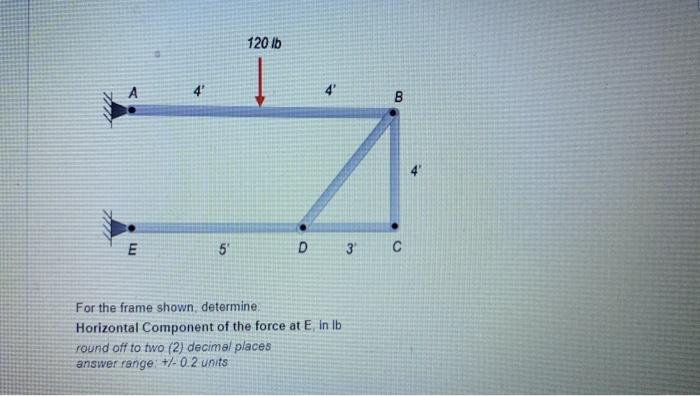

E 4' 5 120 lb D 4' For the frame shown, determine. Horizontal Component of the force at E, in lb. round off to two (2) decimal places answer range +/- 0.2 units 3 C
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
