Subject: Statics Rigid Bodies
Determine the force in each member of the loaded truss. Alltriangles are equilateral with side length d. Theforces are positive if in tension, negative if incompression.
Help Asap Subject Statics Rigid Bodies Determine The Force In Each Member Of The Loaded Truss All Triangles Are Eq 1 (60.84 KiB) Viewed 67 times

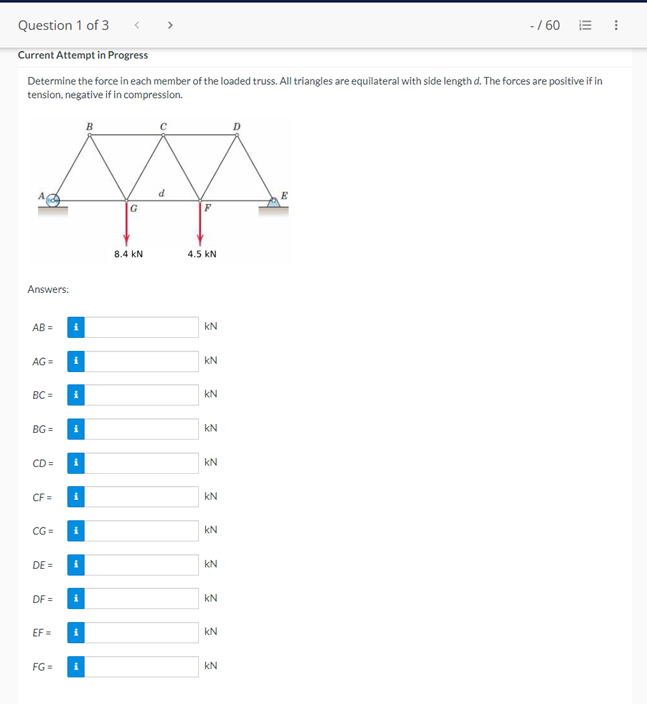

Question 1 of 3 < > Current Attempt in Progress Determine the force in each member of the loaded truss. All triangles are equilateral with side length d. The forces are positive if in tension, negative if in compression. Answers: AB= AG= BC= BG= CD= CF= CG= DE= DF= EF= FG = i i i G 8.4 KN d 4.5 KN 3 3 3 3 3 KN KN 2 KN 3 3 3 3 KN D E - / 60
