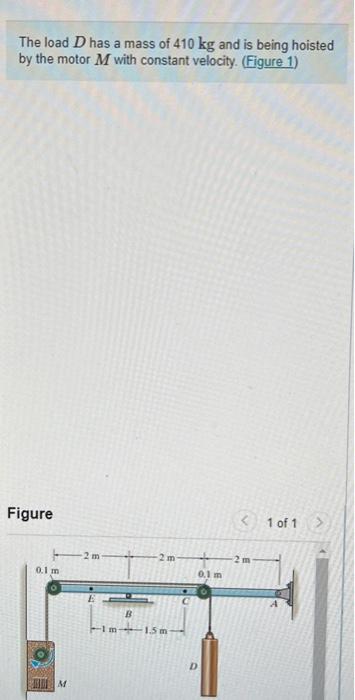

The load D has a mass of 410 kg and is being hoisted by the motor M with constant velocity. (Figure 1) Figure 0.1 m M -2 m E Tim B 2 m 15m 0.1 m D 2m 1 of 1

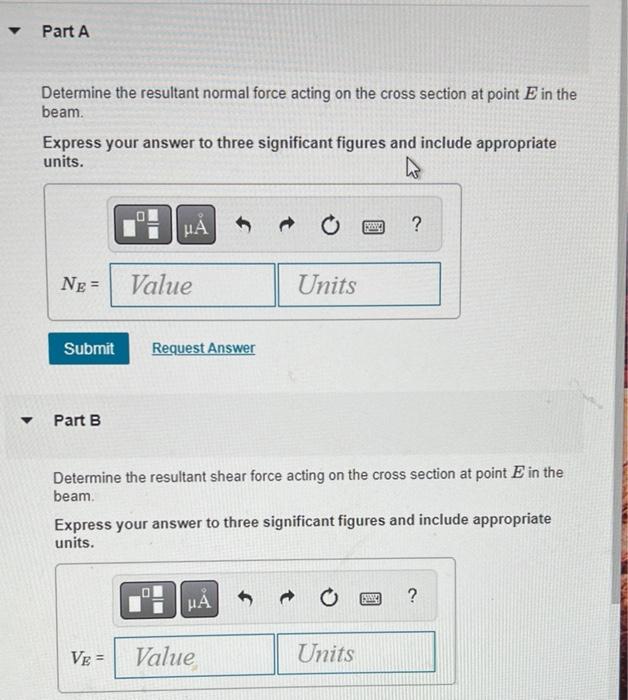

▼ Part A Determine the resultant normal force acting on the cross section at point E in the beam. Express your answer to three significant figures and include appropriate units. 4 NE = Submit Part B HA Value VE = Request Answer Determine the resultant shear force acting on the cross section at point E in the beam. μA Units Express your answer to three significant figures and include appropriate units. Value → PAVE ? Units ?

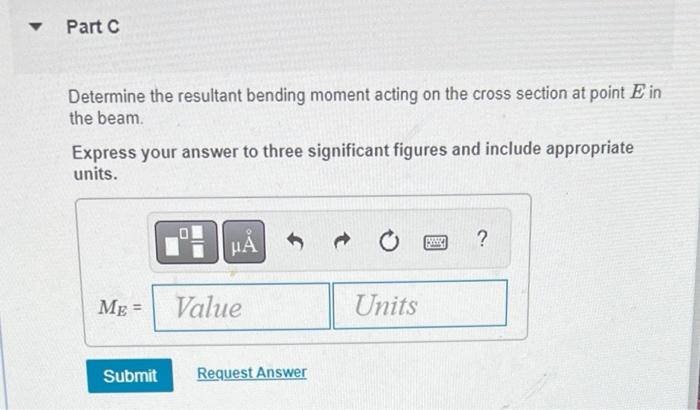

▼ Part C Determine the resultant bending moment acting on the cross section at point E in the beam. Express your answer to three significant figures and include appropriate units. ME = μA Value Submit Request Answer Units ?
