a. Find the general flow pattern of the network shown in the figure. b. Assuming that the flow must be in the directions

Post by answerhappygod »

A Find The General Flow Pattern Of The Network Shown In The Figure B Assuming That The Flow Must Be In The Directions 1
A Find The General Flow Pattern Of The Network Shown In The Figure B Assuming That The Flow Must Be In The Directions 1 (24.74 KiB) Viewed 38 times

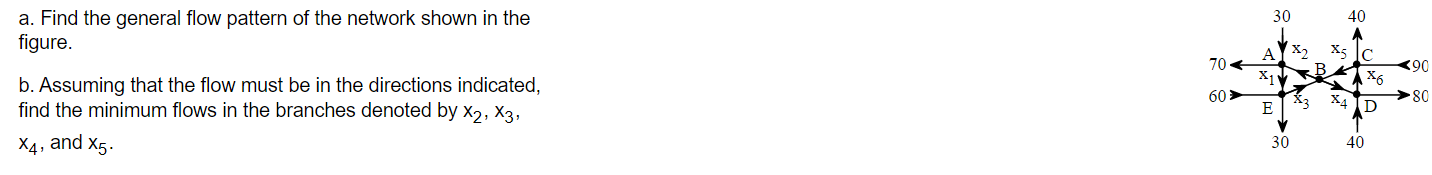

a. Find the general flow pattern of the network shown in the figure. b. Assuming that the flow must be in the directions indicated, find the minimum flows in the branches denoted by X2, X3, X4, and X5. 704 60% 30 E 30 40 40 x6 90 80
