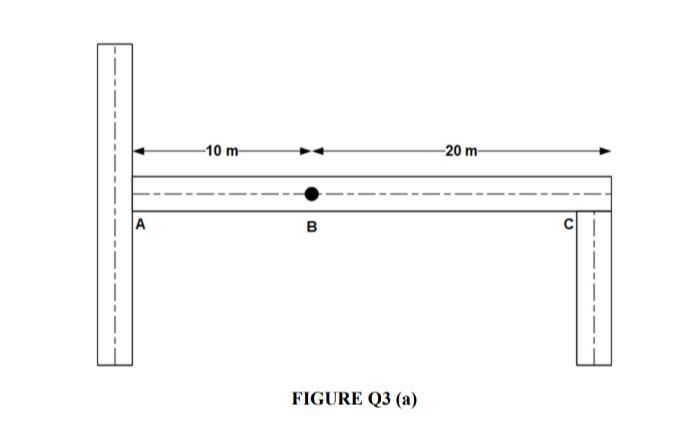

A -10 m- B 00 FIGURE Q3 (a) -20 m- U

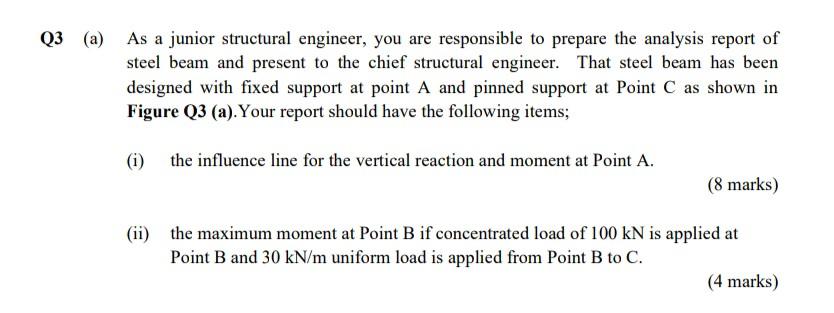

Q3 (a) As a junior structural engineer, you are responsible to prepare the analysis report of steel beam and present to the chief structural engineer. That steel beam has been designed with fixed support at point A and pinned support at Point C as shown in Figure Q3 (a). Your report should have the following items; (i) the influence line for the vertical reaction and moment at Point A. (8 marks) (ii) the maximum moment at Point B if concentrated load of 100 kN is applied at Point B and 30 kN/m uniform load is applied from Point B to C. (4 marks)
