(b) You have been appointed as a junior structural engineer to design a truss bridge across Sungai Kiri with a pin and r

Post by answerhappygod »

B You Have Been Appointed As A Junior Structural Engineer To Design A Truss Bridge Across Sungai Kiri With A Pin And R 1
B You Have Been Appointed As A Junior Structural Engineer To Design A Truss Bridge Across Sungai Kiri With A Pin And R 1 (30.72 KiB) Viewed 34 times

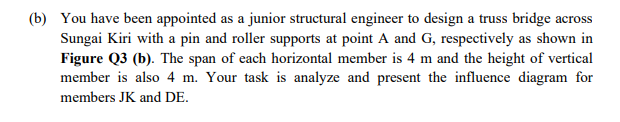

(b) You have been appointed as a junior structural engineer to design a truss bridge across Sungai Kiri with a pin and roller supports at point A and G, respectively as shown in Figure Q3 (b). The span of each horizontal member is 4 m and the height of vertical member is also 4 m. Your task is analyze and present the influence diagram for members JK and DE.
TIT H B J K E 6 panels @ 4 m = 24 m FIGURE Q3 (b) F T 4 m G
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
