The subject is Structural Analysis. Need help answering this within few hours, will upvote immediately!
The Subject Is Structural Analysis Need Help Answering This Within Few Hours Will Upvote Immediately 1 (135.57 KiB) Viewed 20 times
The Subject Is Structural Analysis Need Help Answering This Within Few Hours Will Upvote Immediately 2 (83.88 KiB) Viewed 20 times

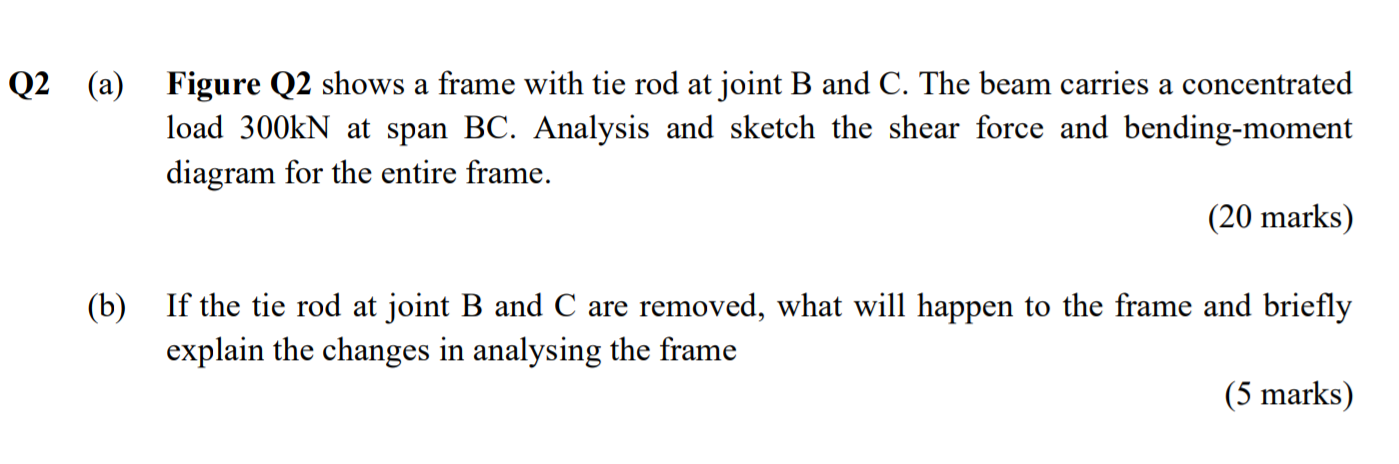

Q2 (a) Figure Q2 shows a frame with tie rod at joint B and C. The beam carries a concentrated load 300kN at span BC. Analysis and sketch the shear force and bending-moment diagram for the entire frame. (20 marks) (b) If the tie rod at joint B and C are removed, what will happen to the frame and briefly explain the changes in analysing the frame (5 marks)

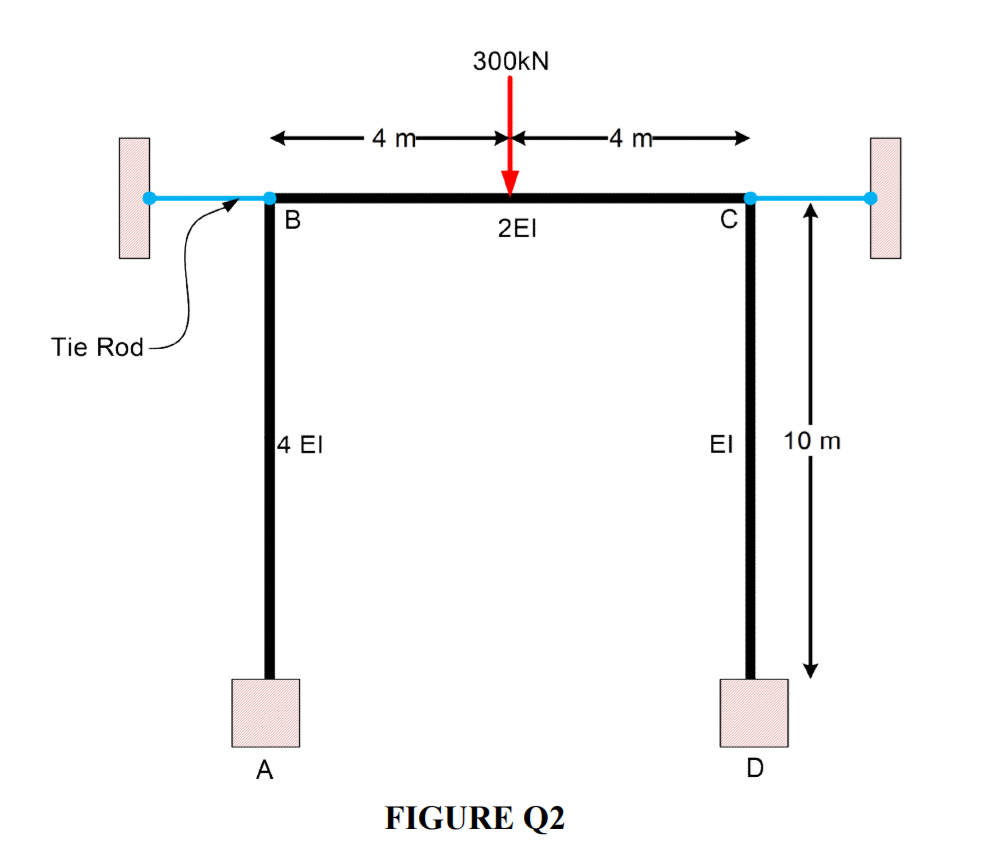

Tie Rod B 4 ΕΙ A 4 m- 300KN 2EI FIGURE Q2 -4 m- C ΕΙ D 10 m
