The subject is Structural Analysis. Need help answering this asap! Will upvote
P = 10
The Subject Is Structural Analysis Need Help Answering This Asap Will Upvote P 10 1 (185.02 KiB) Viewed 23 times
The Subject Is Structural Analysis Need Help Answering This Asap Will Upvote P 10 2 (58.04 KiB) Viewed 23 times

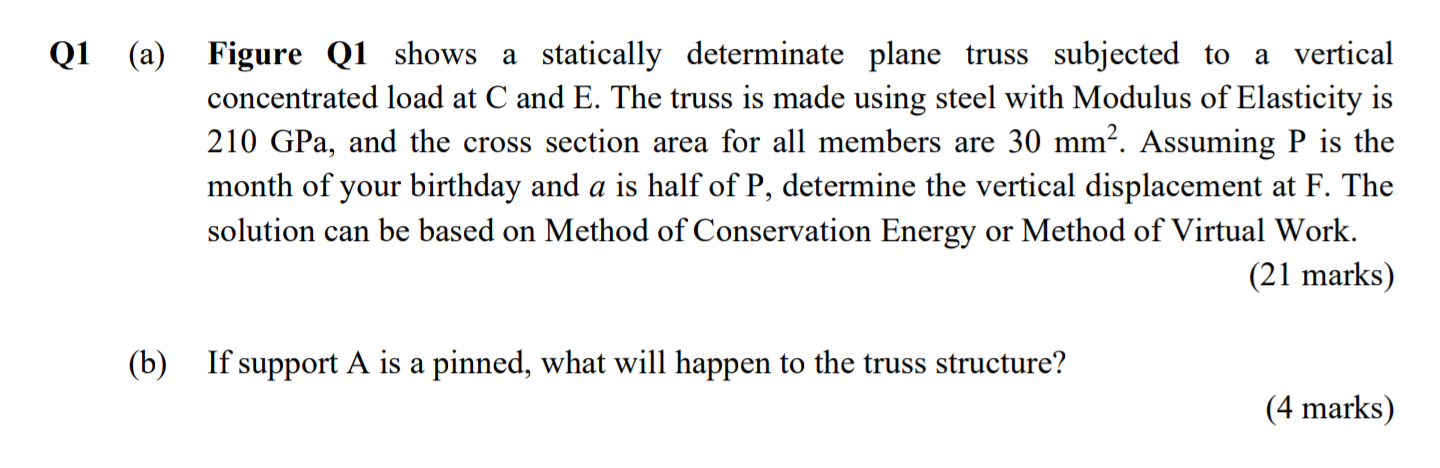

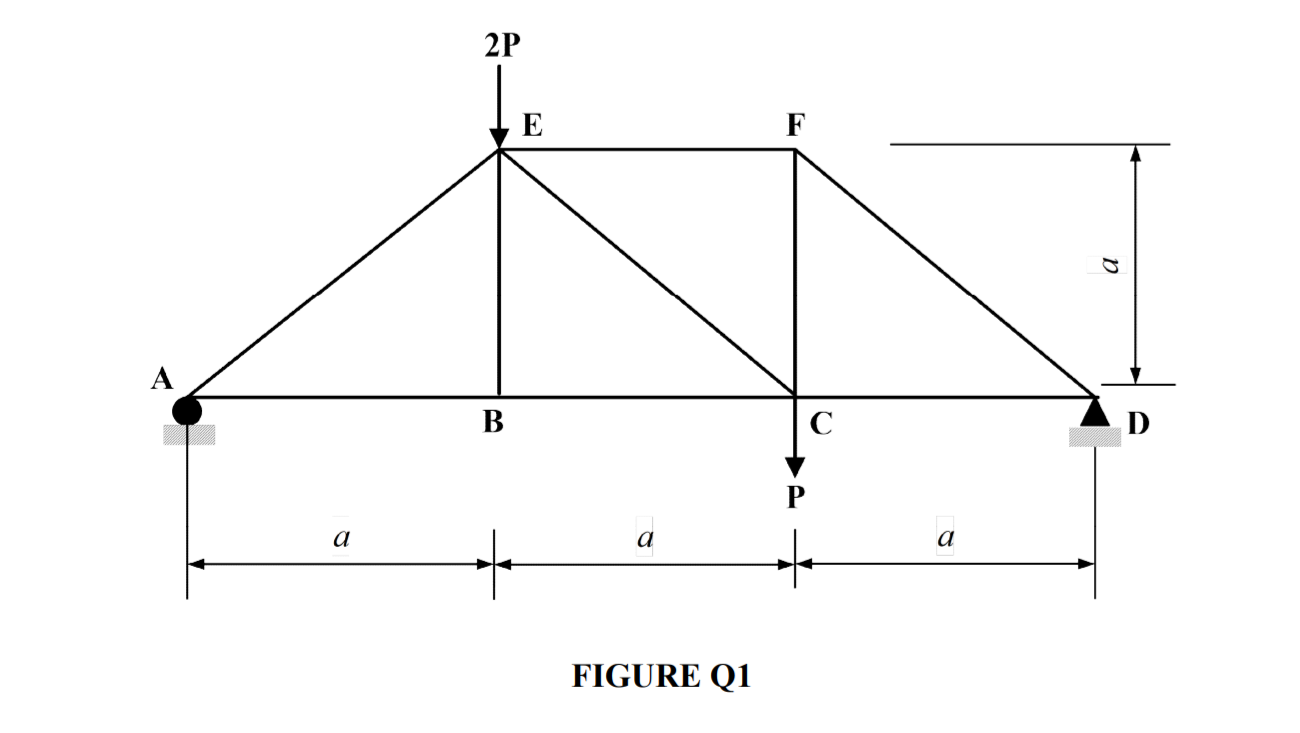

Q1 (a) Figure Q1 shows a statically determinate plane truss subjected to a vertical concentrated load at C and E. The truss is made using steel with Modulus of Elasticity is 210 GPa, and the cross section area for all members are 30 mm². Assuming P is the month of your birthday and a is half of P, determine the vertical displacement at F. The solution can be based on Method of Conservation Energy or Method of Virtual Work. (21 marks) (b) If support A is a pinned, what will happen to the truss structure? (4 marks)
a 2P B E FIGURE Q1 F C + a a
