A reinforced concrete T-beam has the following properties: Flange width, bf = 800 mm Flange thickness = 100 mm Width of

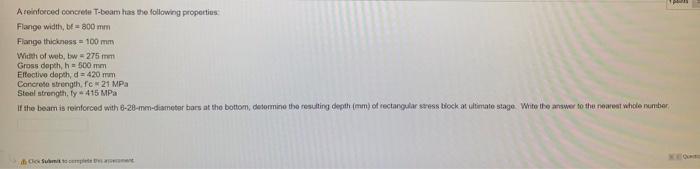

A reinforced concrete T-beam has the following properties: Flange width, bf = 800 mm Flange thickness = 100 mm Width of web, bw = 275 mm Gross depth, h= 500 mm Effective depth, d = 420 mm Concrete strength, fc 21 MPa Steel strength, ty 415 MPa If the beam is reinforced with 6-28-mm-diameter bars at the bottom, determine the resulting depth (mm) of rectangular stress block at ultimate stage. Write the answer to the nearest whole number CoSubmit to complete sammen
