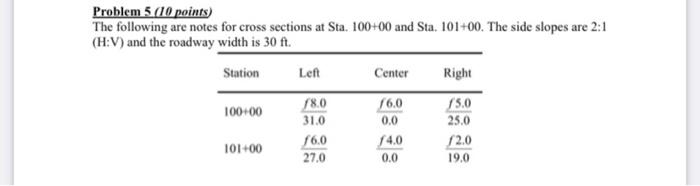

Problem 5 (10 points) The following are notes for cross sections at Sta. 100+00 and Sta. 101+00. The side slopes are 2:1 (H:V) and the roadway width is 30 ft. Station 100+00 101+00 Left 18.0 31.0 ƒ6.0 27,0 Center 16.0 0.0 f4.0 0.0 Right 15.0 25.0 ƒ2.0 19.0
Problem 6 (10 points) For a proposed highway, the following planimetered areas in square feet were obtained. Using any method of your choice, determine the total volumes of cut and fill between stations 94+00 and 97+00. support wheel pivot nesuring da tracer am Planimeter Die Station 94+00 95+00 95+50 96+00 97+00 Cut 76 68 0 Fill 0 50 66
