Problem 4 (5 points) A designed vertical curve with length 1,200 ft. is to pass through point D on the curve, which is l

Post by answerhappygod »

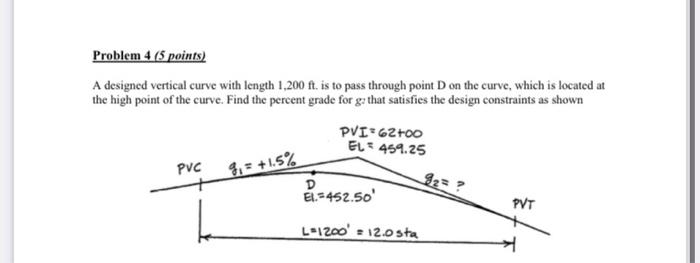

Problem 4 5 Points A Designed Vertical Curve With Length 1 200 Ft Is To Pass Through Point D On The Curve Which Is L 1
Problem 4 5 Points A Designed Vertical Curve With Length 1 200 Ft Is To Pass Through Point D On The Curve Which Is L 1 (15.61 KiB) Viewed 30 times
Problem 4 (5 points) A designed vertical curve with length 1,200 ft. is to pass through point D on the curve, which is located at the high point of the curve. Find the percent grade for g: that satisfies the design constraints as shown PVC 9₁ = +1.5% PVI=62+00 EL 459.25 El. =452.50 L-1200 = 12.0 sta 92 = ? PVT
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
