PROBLEM 2: A reinforced concrete beam having a simple span of 8 m carries a factored uniformly distributed load of Wu. T

[answerhappygod]

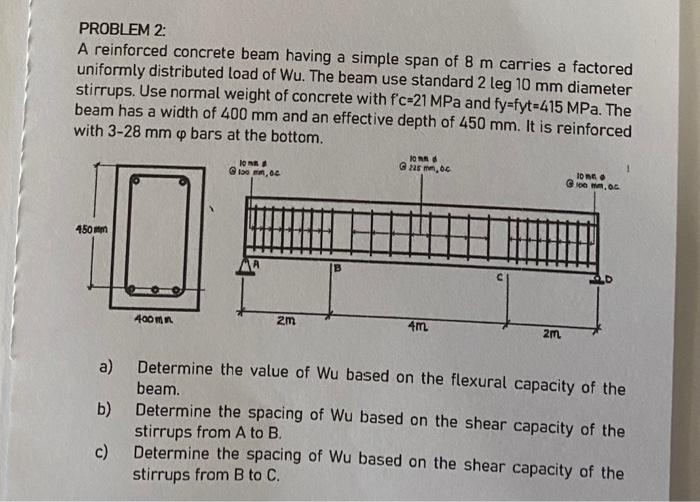

Problem 2 A Reinforced Concrete Beam Having A Simple Span Of 8 M Carries A Factored Uniformly Distributed Load Of Wu T 1 (58.7 KiB) Viewed 29 times

PROBLEM 2: A reinforced concrete beam having a simple span of 8 m carries a factored uniformly distributed load of Wu. The beam use standard 2 leg 10 mm diameter stirrups. Use normal weight of concrete with f'c-21 MPa and fy-fyt=415 MPa. The beam has a width of 400 mm and an effective depth of 450 mm. It is reinforced with 3-28 mm op bars at the bottom. 450mm a) b) c) 400mm lonna @100 mm, c 2m John d @225 mm, c 4m 2m 10 an G100 mm, oc Determine the value of Wu based on the flexural capacity of the beam. Determine the spacing of Wu based on the shear capacity of the stirrups from A to B. Determine the spacing of Wu based on the shear capacity of the stirrups from B to C.
