An indeterminate beam carries uniformly distributed loads as shown in the Figure. Using any method you like, solve the f

Post by answerhappygod »

An Indeterminate Beam Carries Uniformly Distributed Loads As Shown In The Figure Using Any Method You Like Solve The F 1
An Indeterminate Beam Carries Uniformly Distributed Loads As Shown In The Figure Using Any Method You Like Solve The F 1 (82.18 KiB) Viewed 19 times

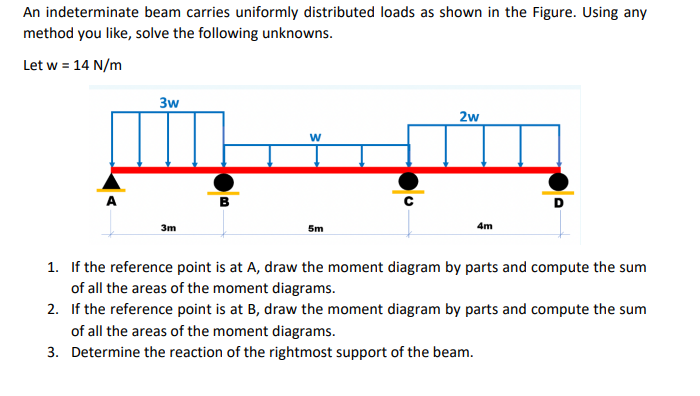

An indeterminate beam carries uniformly distributed loads as shown in the Figure. Using any method you like, solve the following unknowns. Let w = 14 N/m A 3w 3m 5m 2w 4m 1. If the reference point is at A, draw the moment diagram by parts and compute the sum of all the areas of the moment diagrams. 2. If the reference point is at B, draw the moment diagram by parts and compute the sum of all the areas of the moment diagrams. 3. Determine the reaction of the rightmost support of the beam.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
