- 8 Points Difficulty 4 5 Co C A B C D 7 4 2 In 4 In A H 1 9 Ft 2014 Michael Swanbom 030 The Assembly Shown Has The Di 1 (39.1 KiB) Viewed 33 times
(8 points) Difficulty (4/5) CO C a b C d 7 4 2 in 4 in a h 1.9 ft 2014 Michael Swanbom 030 The assembly shown has the di
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
(8 points) Difficulty (4/5) CO C a b C d 7 4 2 in 4 in a h 1.9 ft 2014 Michael Swanbom 030 The assembly shown has the di

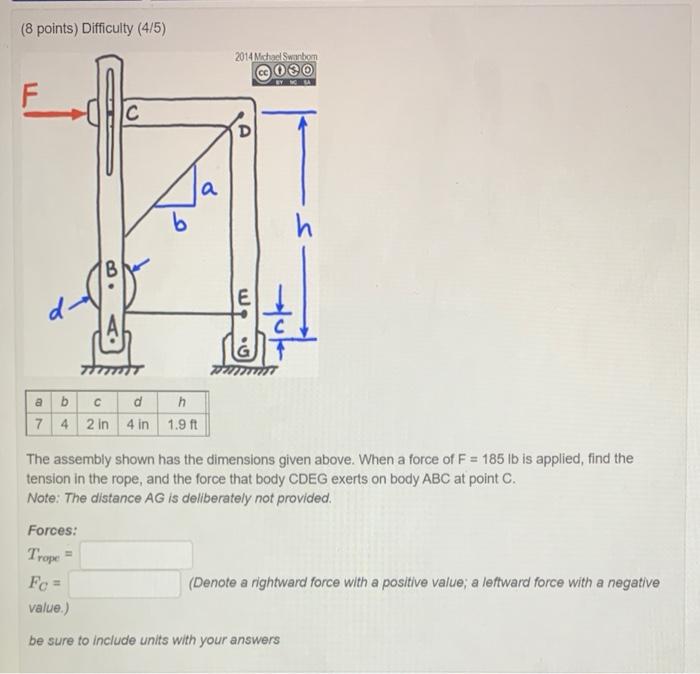

(8 points) Difficulty (4/5) CO C a b C d 7 4 2 in 4 in a h 1.9 ft 2014 Michael Swanbom 030 The assembly shown has the dimensions given above. When a force of F = 185 lb is applied, find the tension in the rope, and the force that body CDEG exerts on body ABC at point C. Note: The distance AG is deliberately not provided. Forces: Trope = Fc= value.) be sure to include units with your answers (Denote a rightward force with a positive value; a leftward force with a negative
