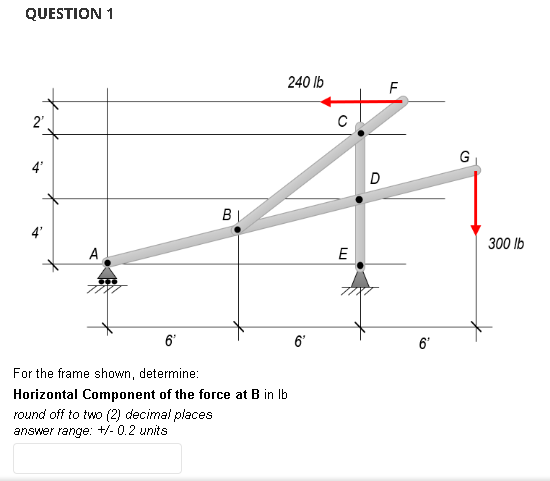

QUESTION 1 2 4' A 240 lb F C G D 4 BL E 6' For the frame shown, determine: Horizontal Component of the force at B in lb round off to two (2) decimal places answer range: +/- 0.2 units 6' 6' 300 lb

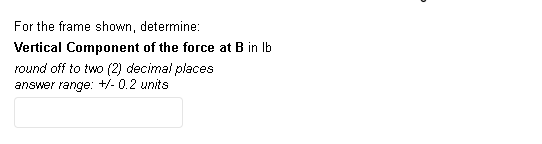

For the frame shown, determine: Vertical Component of the force at B in lb round off to two (2) decimal places answer range: +/- 0.2 units
