Question 4 of 4 View Policies Current Attempt in Progress Answers: Calculate the forces in members BE and BD of the load

[answerhappygod]

Question 4 Of 4 View Policies Current Attempt In Progress Answers Calculate The Forces In Members Be And Bd Of The Load 1 (19.89 KiB) Viewed 24 times

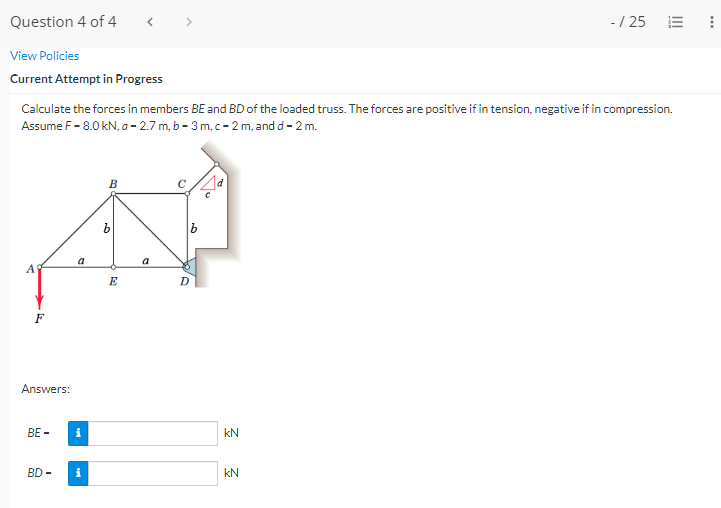

Question 4 of 4 View Policies Current Attempt in Progress Answers: Calculate the forces in members BE and BD of the loaded truss. The forces are positive if in tension, negative if in compression. Assume F-8.0 kN, a-2.7 m, b-3 m, c-2 m, and d-2 m. BE- BD- a i i B < 4 E a D b Zº C kN - /25 kN ***
