7. The T-shape shown in the figure is used as a tension member. Given that the gross are Ag=2568 mm^2, tw=9mm, gross dep
7. The T-shape shown in the figure is used as a tension member.Given that the gross are Ag=2568 mm^2, tw=9mm, gross depth d=230mmand bolts are 23mm diameter with Fy=248MPa andFu=400Mpa. Calculate the nominal block shear strength forcombined tensile rupture and gross yielding in shear. Answer innearest whole number. Consider Ubs=1.0

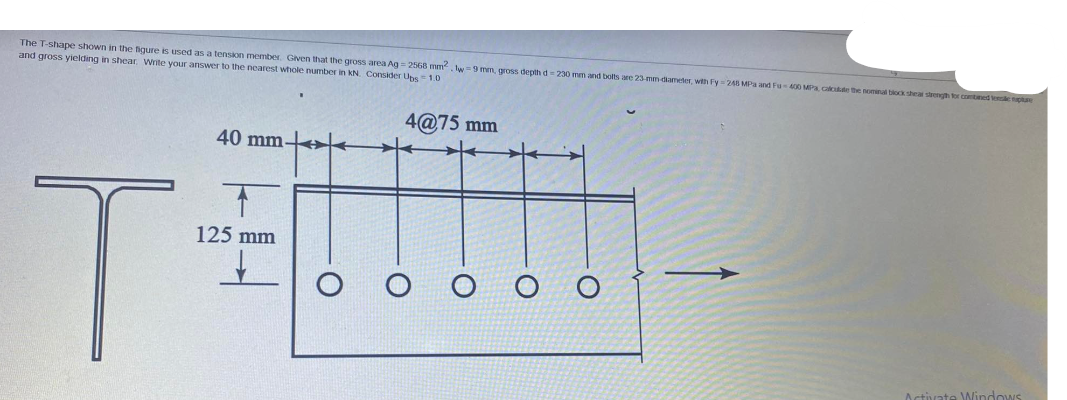

The T-shape shown in the figure is used as a tension member. Given that the gross area Ag = 2568 mm2. lw 9 mm, gross depth d-230 mm and bolts are 23-mm diameter, with Fy=248 MPa and Fu-400 MPa, calculate the nominal block shear strength for contand telep and gross yielding in shear. Write your answer to the nearest whole number in KN. Consider Ups - 1.0 4@75 mm T 40 mm 125 mm O Activate Windows
The T-shape shown in the figure is used as a tension member. Given that the gross area Ag = 2568 mm2. lw 9 mm, gross depth d-230 mm and bolts are 23-mm diameter, with Fy=248 MPa and Fu-400 MPa, calculate the nominal block shear strength for contand telep and gross yielding in shear. Write your answer to the nearest whole number in KN. Consider Ups - 1.0 4@75 mm T 40 mm 125 mm O Activate Windows
