(4 marks) (a) As shown in Figure Q2(a), a 700 mm long, 18 mm diameter rod made of a homogeneous, isotropic material is o

[answerhappygod]

4 Marks A As Shown In Figure Q2 A A 700 Mm Long 18 Mm Diameter Rod Made Of A Homogeneous Isotropic Material Is O 1 (20.86 KiB) Viewed 28 times

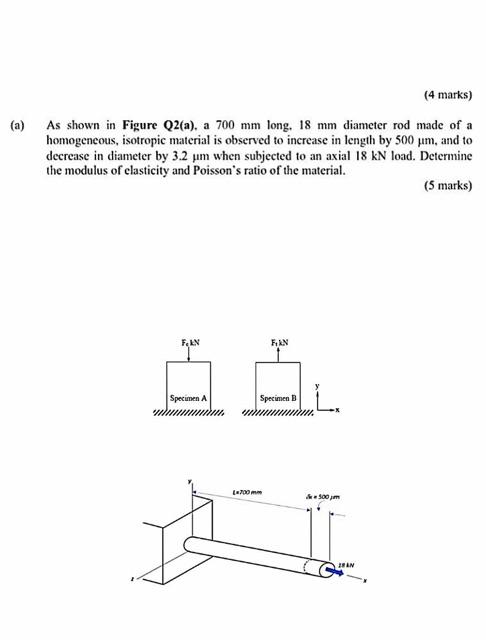

(4 marks) (a) As shown in Figure Q2(a), a 700 mm long, 18 mm diameter rod made of a homogeneous, isotropic material is observed to increase in length by 500 µm, and to decrease in diameter by 3.2 µm when subjected to an axial 18 kN load. Determine the modulus of elasticity and Poisson's ratio of the material. (5 marks) FAN Specimen A FAN Specimen B L=700mm 500m AN
