Test II. Draw the shear, moment, elastic curve, and axial diagram of the beam. 357kN 5m 336.6kN/m 5m hinge 5m 756kNm

Post by answerhappygod »

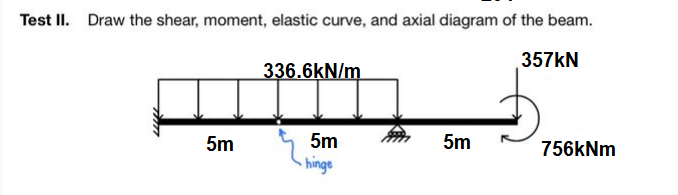

Test Ii Draw The Shear Moment Elastic Curve And Axial Diagram Of The Beam 357kn 5m 336 6kn M 5m Hinge 5m 756knm 1
Test Ii Draw The Shear Moment Elastic Curve And Axial Diagram Of The Beam 357kn 5m 336 6kn M 5m Hinge 5m 756knm 1 (33.66 KiB) Viewed 21 times
Test II. Draw the shear, moment, elastic curve, and axial diagram of the beam. 357kN 5m 336.6kN/m 5m hinge 5m 756kNm
