(c) The thin-walled extruded beam shown in Figure Q2(c) is made of aluminium and has a uniform 3 mm wall thickness. Know

Post by answerhappygod »

C The Thin Walled Extruded Beam Shown In Figure Q2 C Is Made Of Aluminium And Has A Uniform 3 Mm Wall Thickness Know 1
C The Thin Walled Extruded Beam Shown In Figure Q2 C Is Made Of Aluminium And Has A Uniform 3 Mm Wall Thickness Know 1 (29.29 KiB) Viewed 18 times

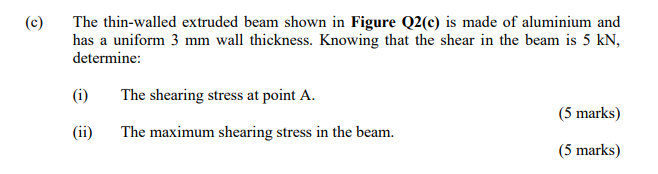

(c) The thin-walled extruded beam shown in Figure Q2(c) is made of aluminium and has a uniform 3 mm wall thickness. Knowing that the shear in the beam is 5 kN, determine: (i) (ii) The shearing stress at point A. The maximum shearing stress in the beam. (5 marks) (5 marks)
60mm 25mm 25mm FIGURE Q2(c) 5kN B
