60mm D 25mm A 25mm Figure Q2 C 5kn B The Thin Walled Extruded Beam Shown In Figure Q2 C Is Made Of Aluminium And Has 1 (256.51 KiB) Viewed 17 times
60mm D 25mm A 25mm Figure Q2 C 5kn B The Thin Walled Extruded Beam Shown In Figure Q2 C Is Made Of Aluminium And Has 2 (128.03 KiB) Viewed 17 times

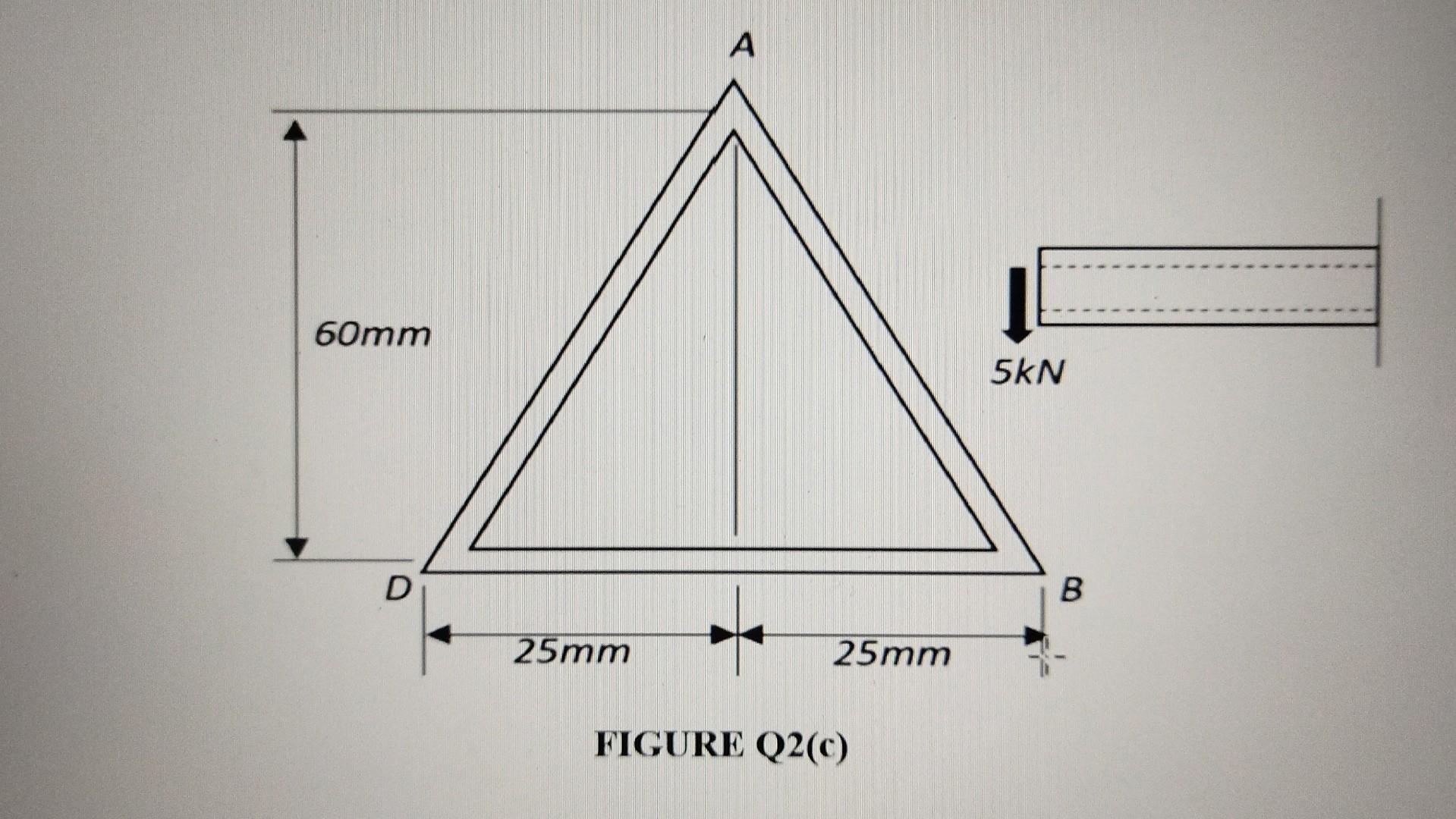

60mm D 25mm A 25mm FIGURE Q2(c) 5kN B

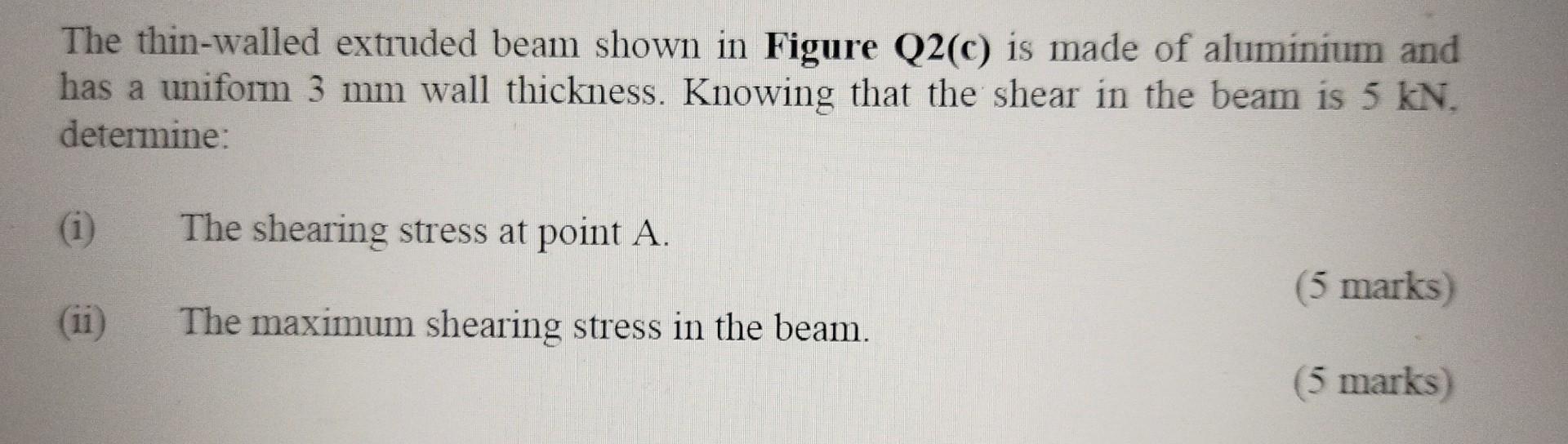

The thin-walled extruded beam shown in Figure Q2(c) is made of aluminium and has a uniform 3 mm wall thickness. Knowing that the shear in the beam is 5 kN. determine: (1) (11) The shearing stress at point A. The maximum shearing stress in the beam. (5 marks) (5 marks)
