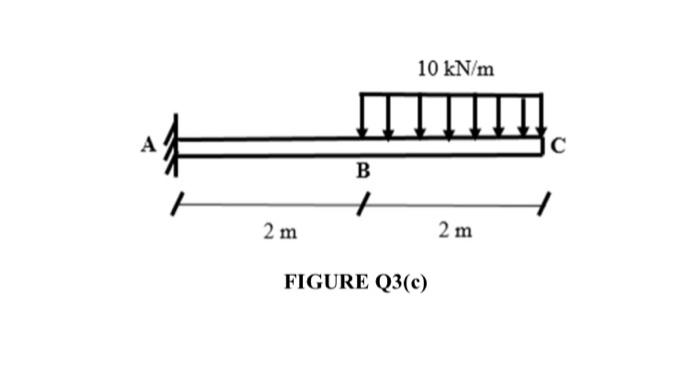

(c) A cantilever beam with the length of 4 m is shown in Figure Q3(e). In this beam, a uniform distributed load of 10 kN/m in the length of BC is applied. Use the moment- area theorem to determine the slope at point B. Take EI as constant. (7 marks)
2m 10 kN/m ™ B + FIGURE Q3(c) 2 m C
